829B

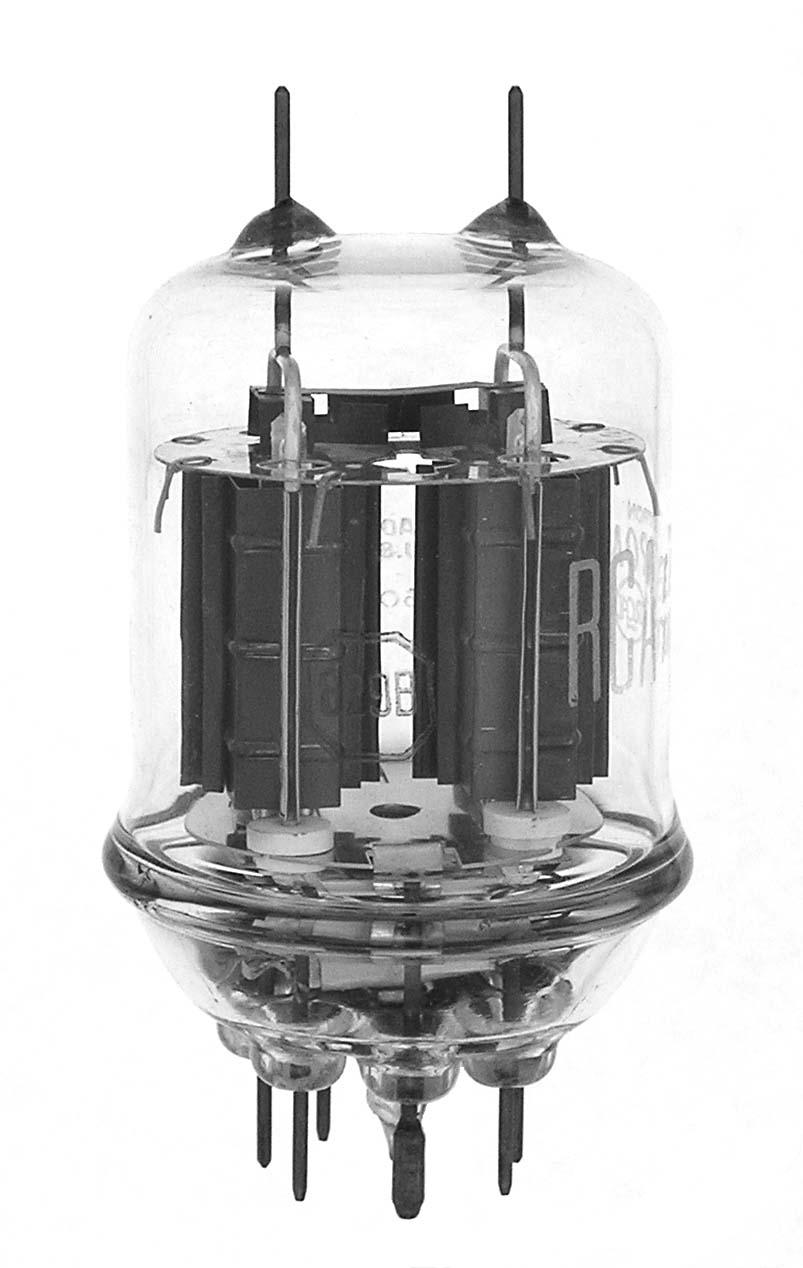

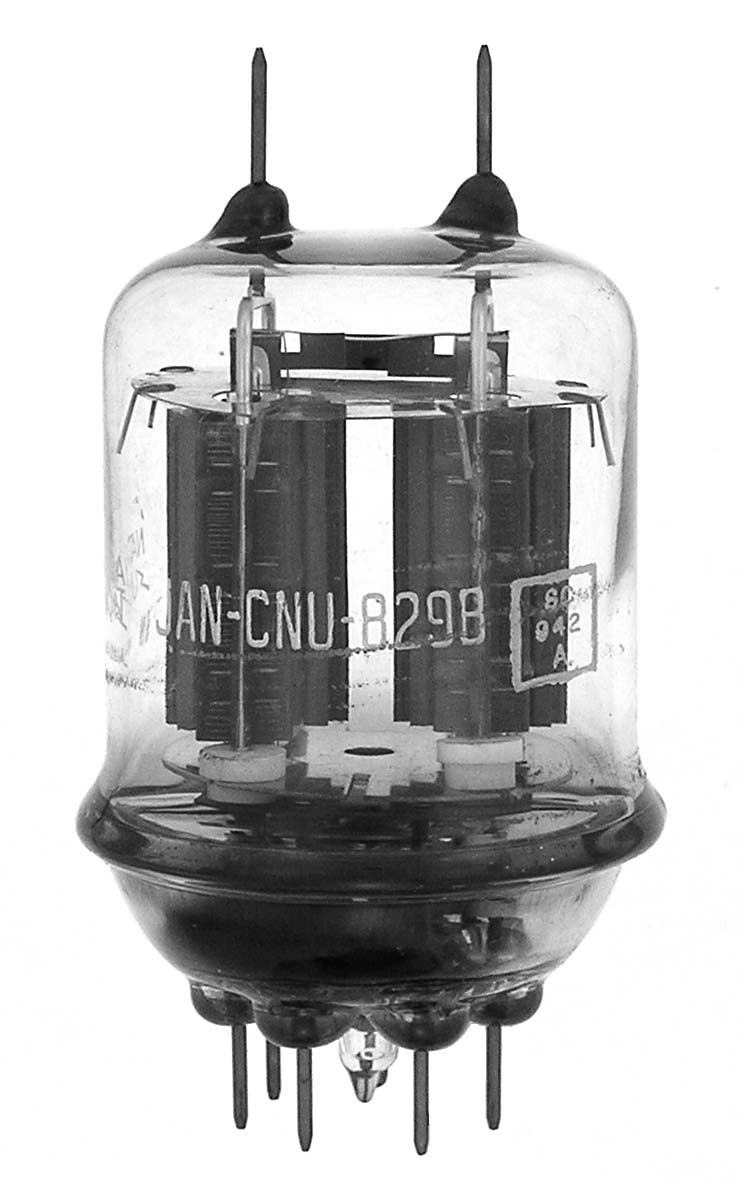

The 829B is a 40 watt dissipation dual pentode designed for VHF applications. Full ratings to 200 MHz. It is an uprated 829 and was used extensively in military and commercial FM VHF communications equipment. The second example was made by National Union.

Length = 4.31" Diameter = 2.37"
Max voltage = 750
Max current = 240 ma
Fil voltage = 6.3 or 12.6
Fil current = 2.25 or 1.125 amps         GOTO INDEX
