826

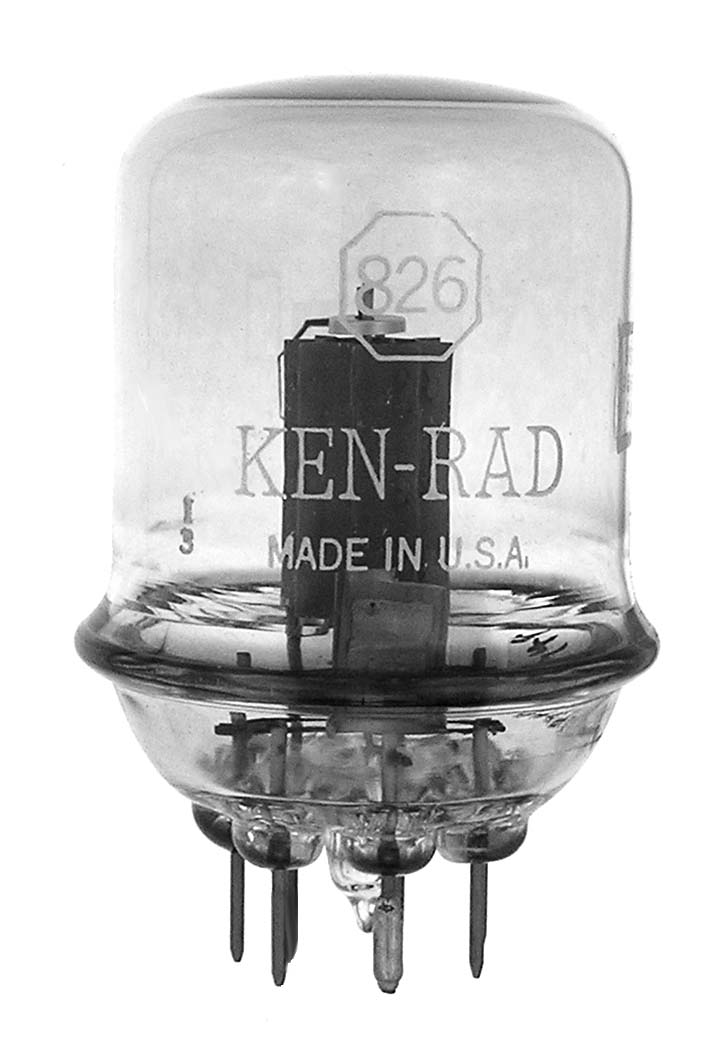

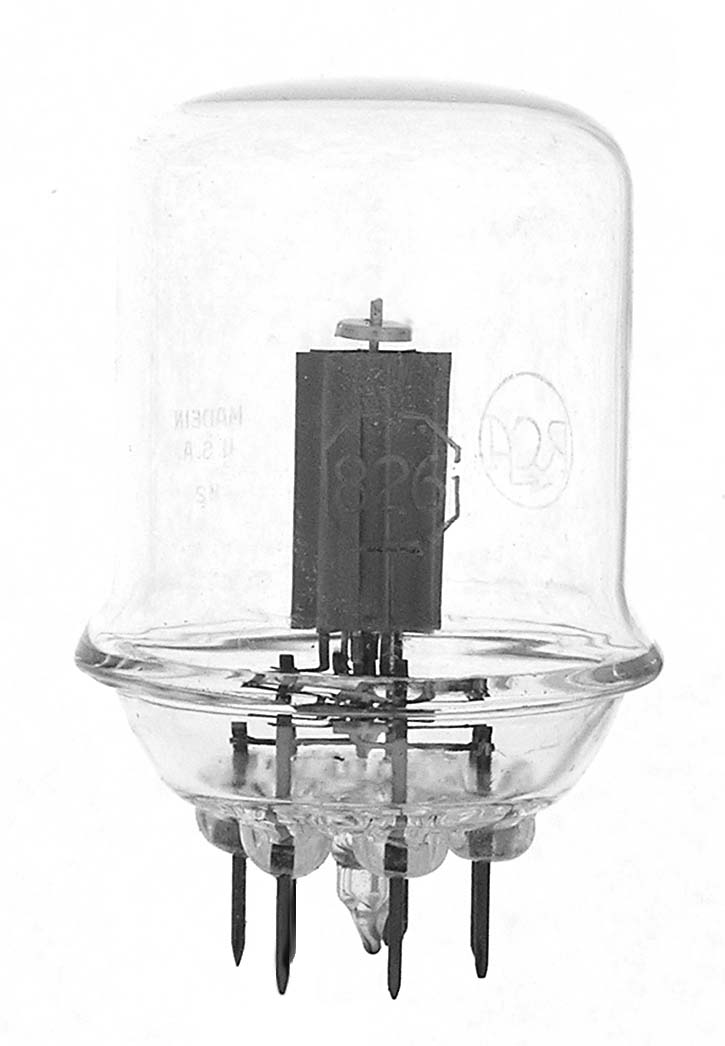

The 826 is a 60 watt dissipation triode with a mu of 31 designed for UHF applications. Full ratings to 250 MHz. The first example is an RCA and the second was made by Kenrad. The third is an Eimac with a different envelope like the 4-65A.

Length = 3.68" Diameter = 2.37"
Max voltage = 1000
Max current = 125 ma
Fil voltage = 7.5
Fil current = 4 amps         GOTO INDEX
