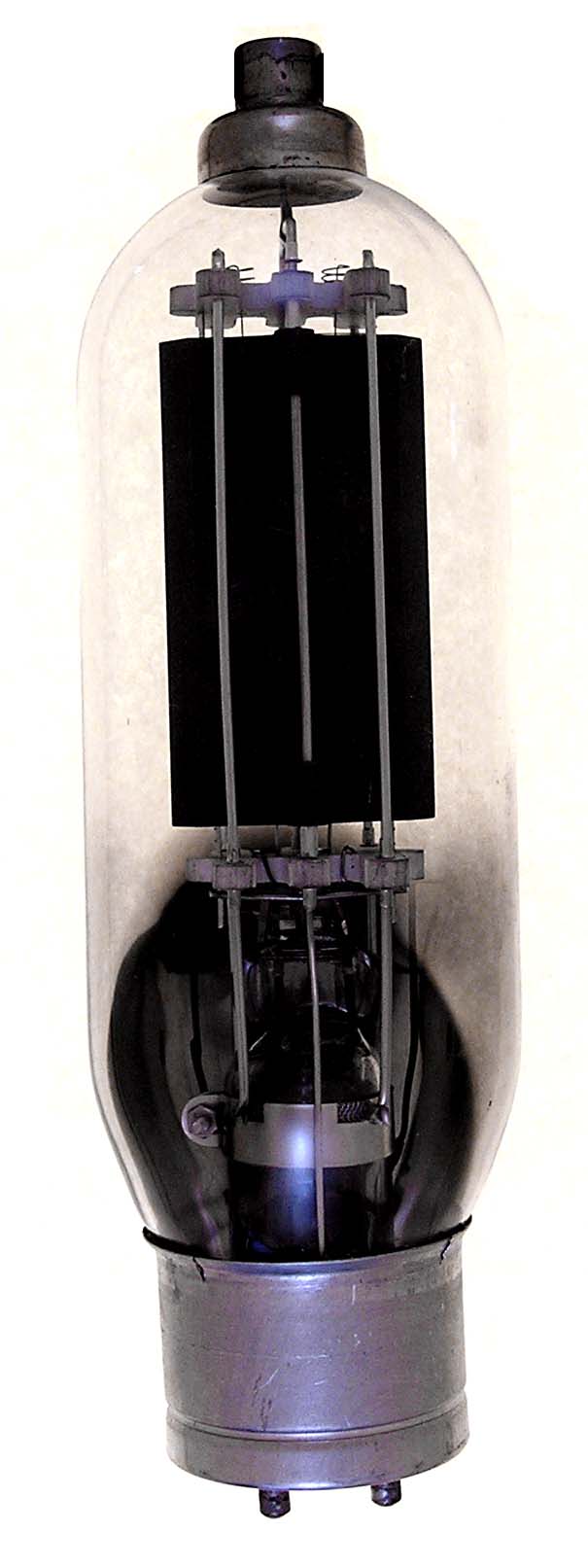

822

The 822 is a 200 watt general purpose triode that has a mu of 30 with full ratings to 20 MHz. An identical tube, the Taylor 814, has a mu of 12. A later version, the 822S, has a side grid terminal and can operate to 30 MHz.


Length = 9.50" Diameter = 2.50"
Max voltage = 2500
Max current = 300 ma
Fil voltage = 10
Fil current = 4 amps
Data sheet:
