816

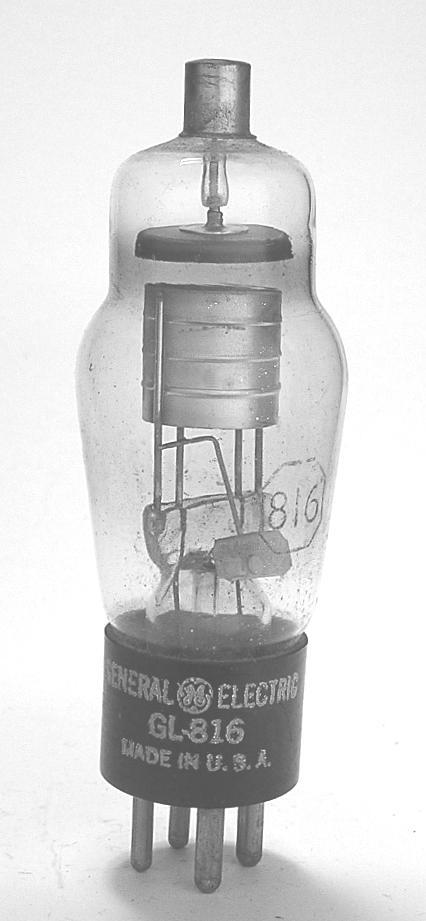

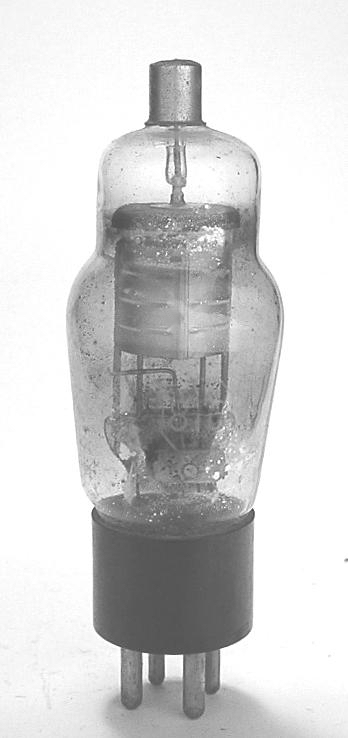

The 816 or VT-216 is a half wave mercury vapor rectifier. The first example was made by RCA and the second by GL (GL-816).

Length = 4.69" Diameter = 1.56"
Max voltage = 7500 piv
Max current = 125 ma
Fil voltage = 2.5
Fil current = 2 amps         GOTO INDEX
