814

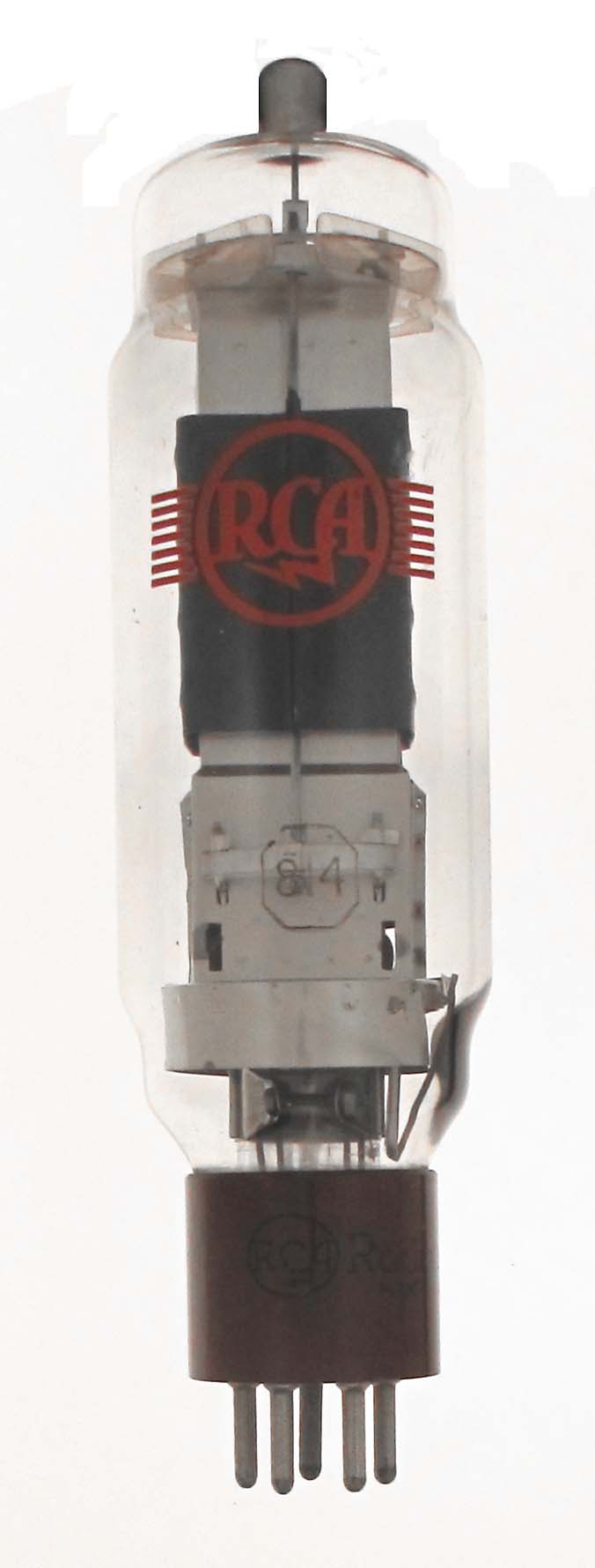

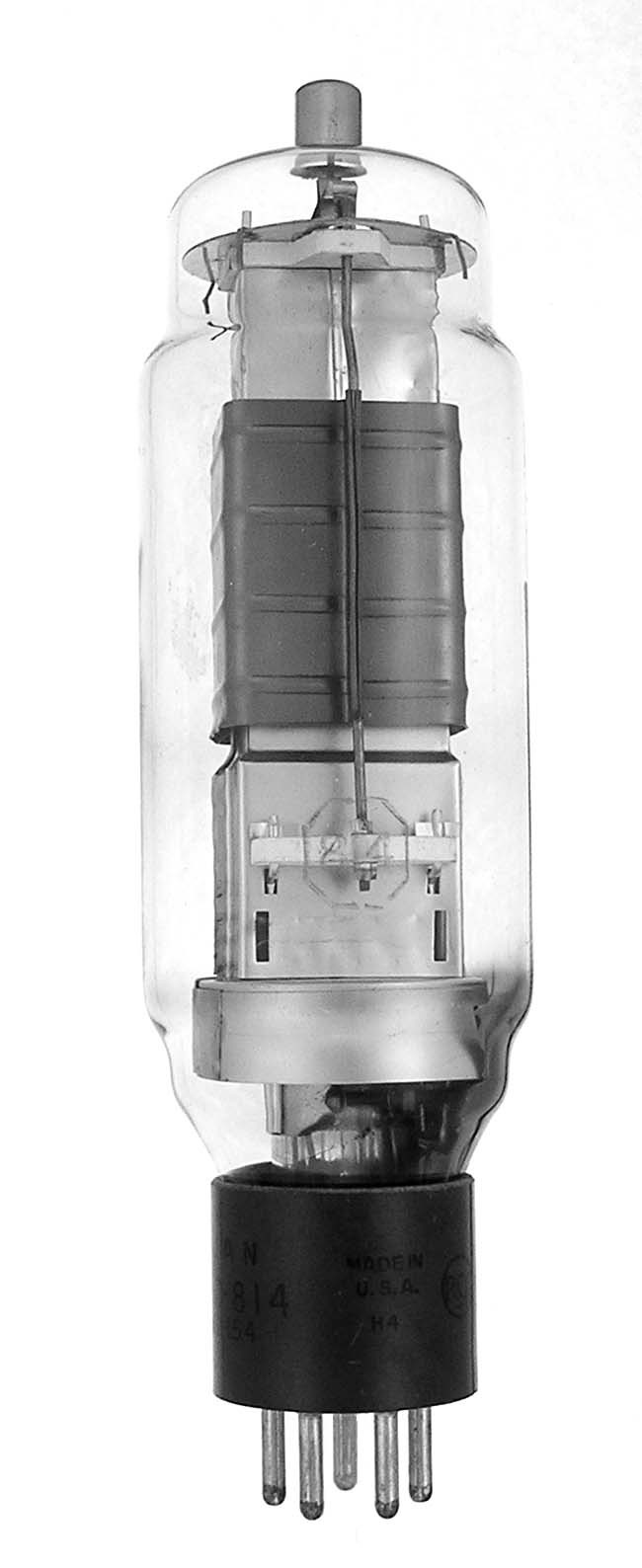

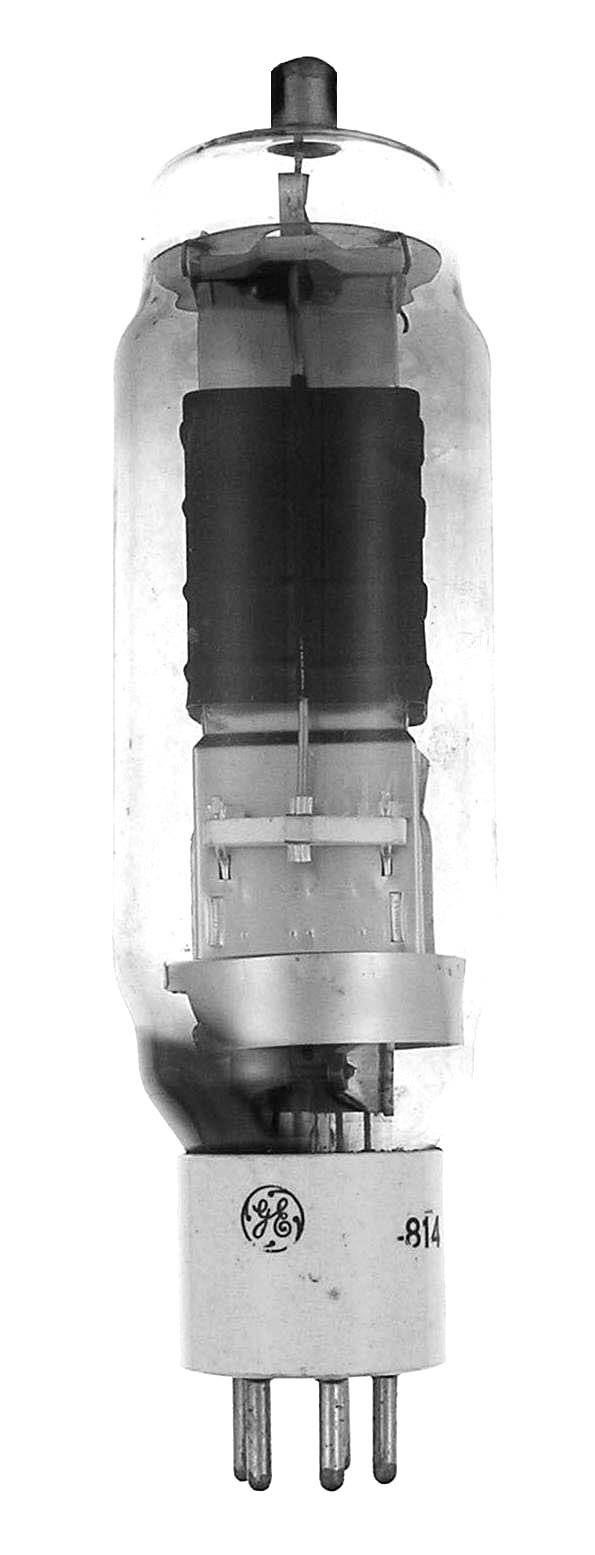

The 814 or VT-154 is a 65 watt beam pentode. Maximum frequency for full output is 30 MHz. An RCA development they were also made by GE. They were made with both white and brown baklite material bases.

Length = 7.75" Diameter = 2.06"
Max voltage = 1500
Max current = 150 ma
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
