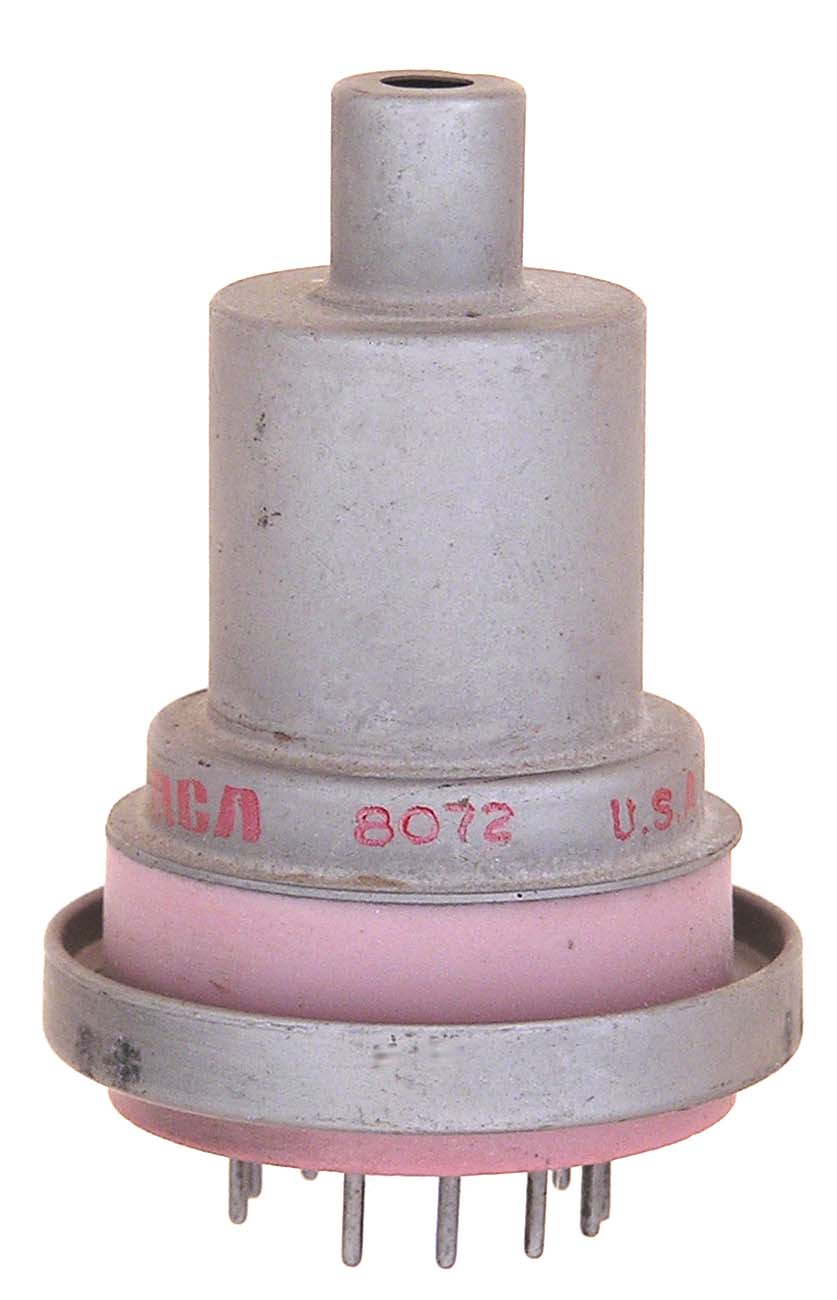

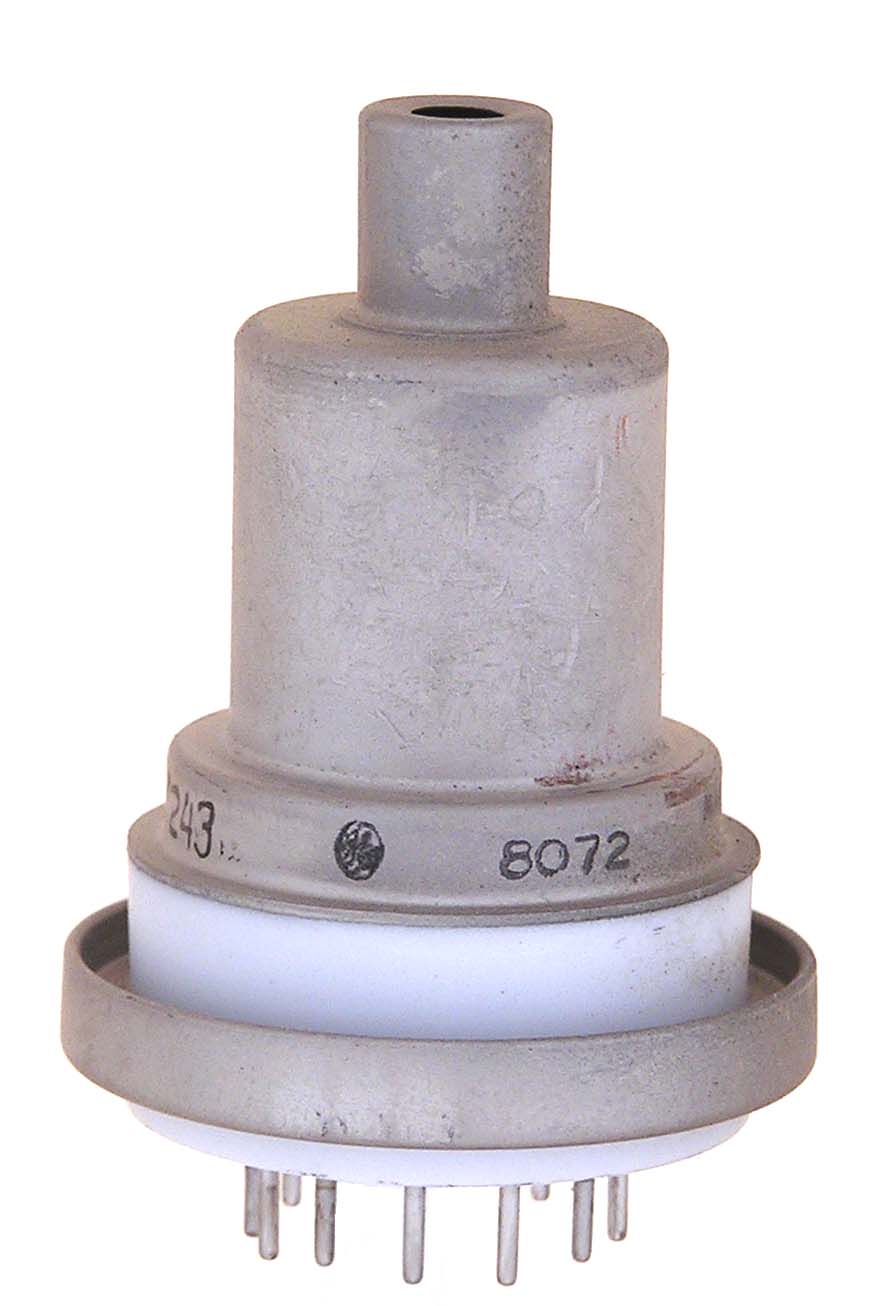

8072

The 8072 is 100 watt tetrode with full ratings to 500 MHz. Designed for mobile operation, it was extensively used in the GE Master Pro series of UHF FM equipment.

Length = 2.12" Diameter = 1.50"
Max voltage = 2250
Max current = 300 ma
Fil voltage = 12 to 15
Fil current = 1.3 amps         GOTO INDEX
