807

The 807 or VT-100 is a 30 watt dissipation pentode with full ratings to 60 MHz first announced by RCA in 1937. A shorter version, the 807W or 5933, was produced by Sylvania. The 807 was a very popular tube in amateur transmitters and a slang expression for a beer is a "cold 807".

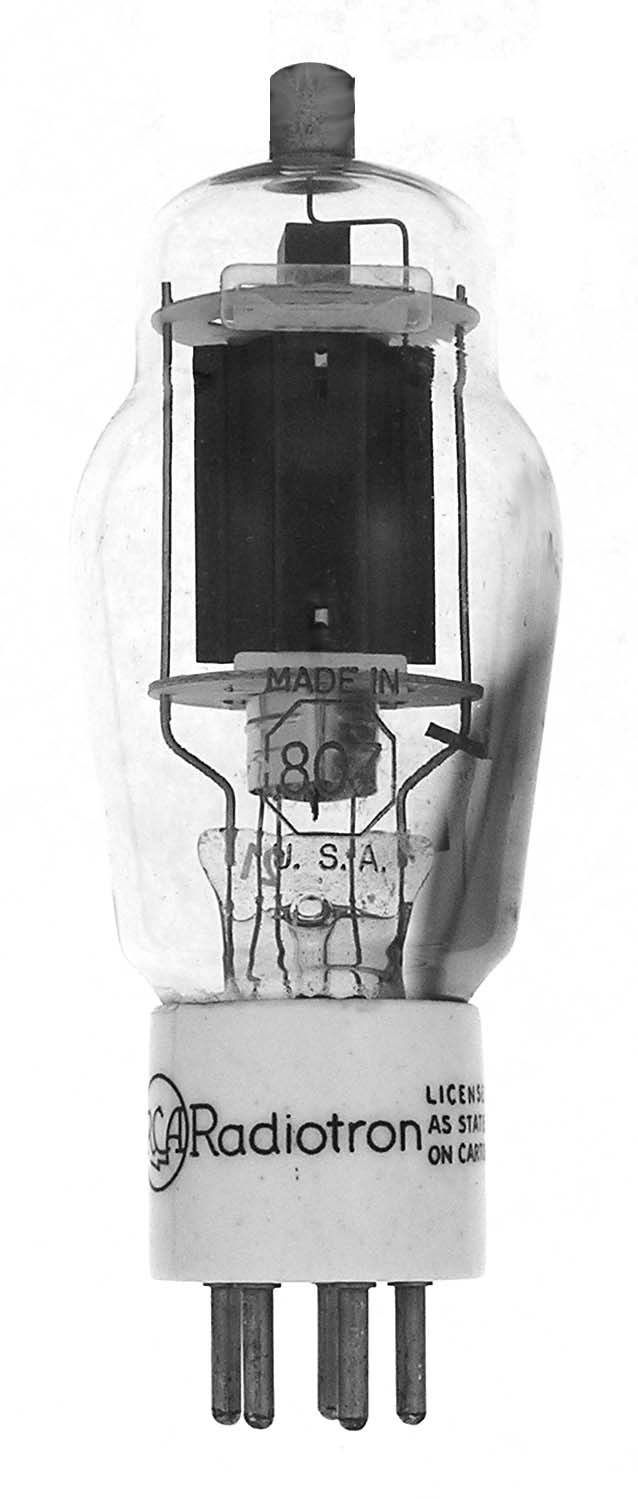

(807)Length = 5.75" Diameter = 2.06"

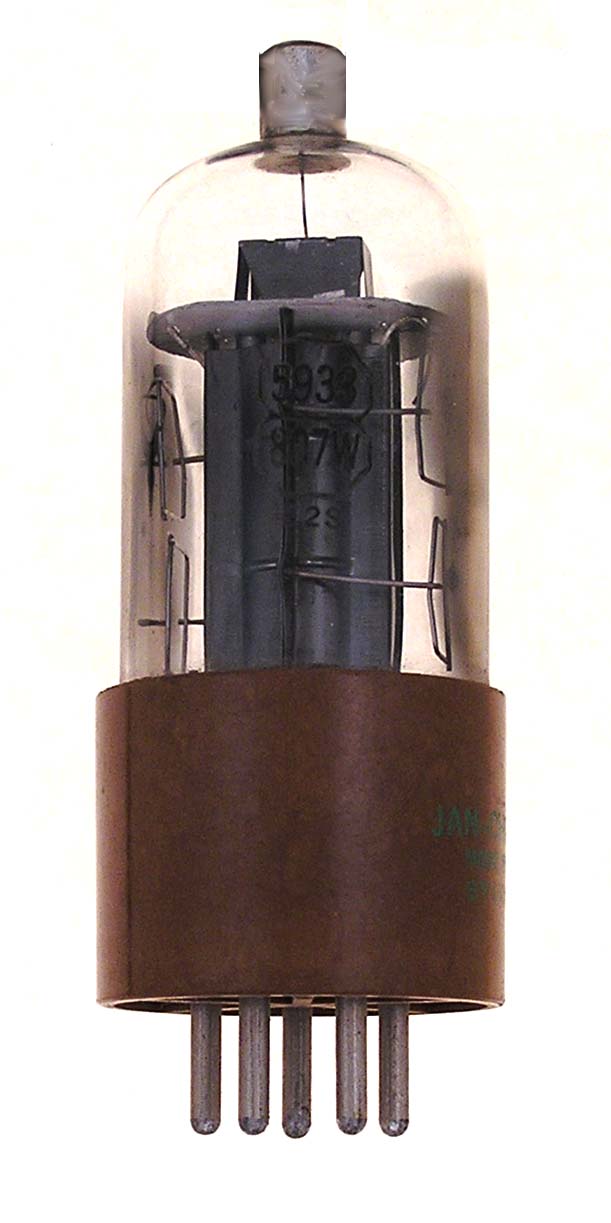

(807W)Length = 4.37" Diameter = 1.50"
Max voltage = 750
Max current = 100 ma
Fil voltage = 6.3
Fil current = .9 amps         GOTO INDEX
