806

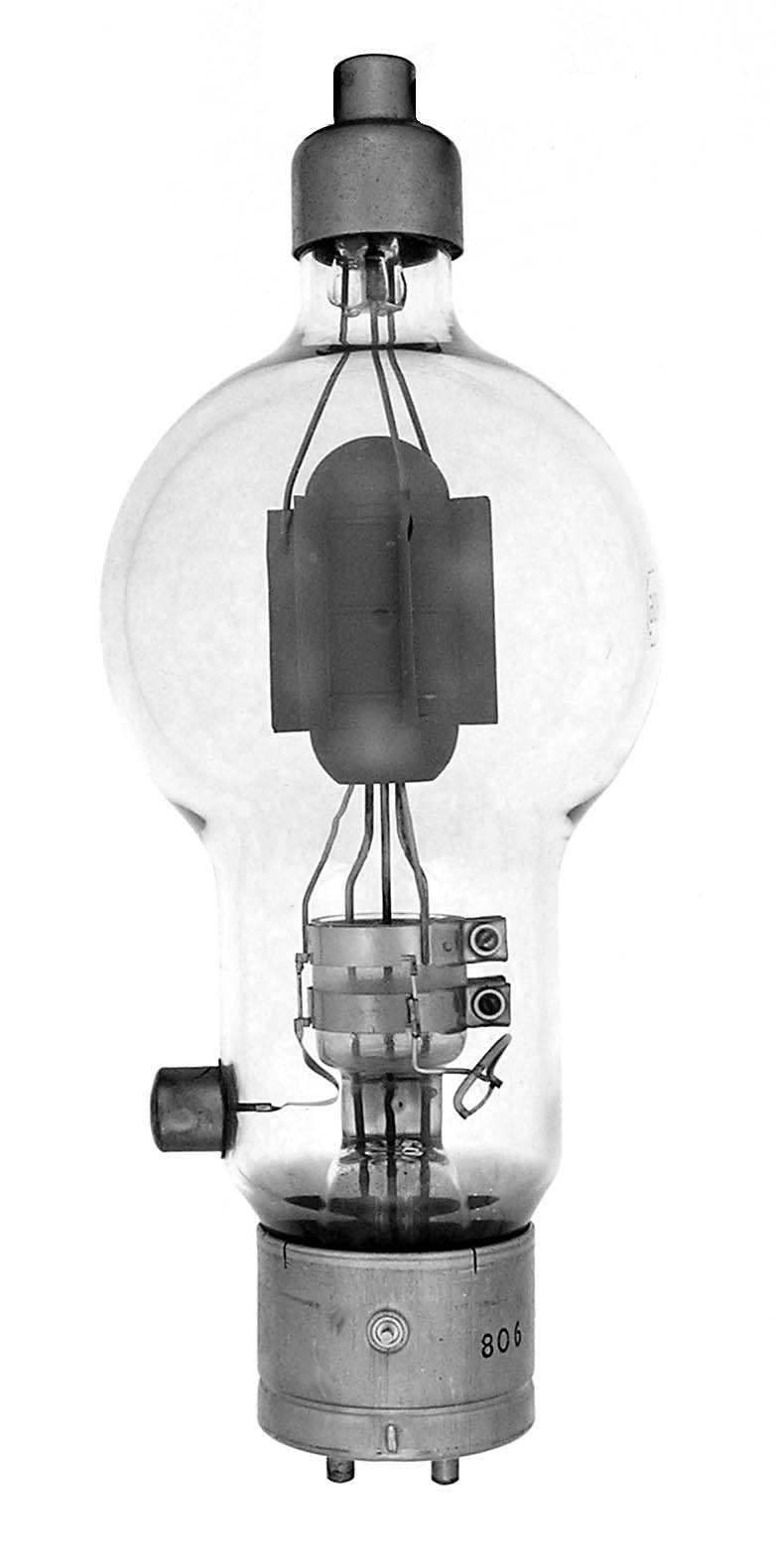

The 806 was RCA's competition for the 250TH. It is a 225 watt triode with a mu of 12.6. They are usable up to 40 MHz at full rating. They were also made by Westinghouse (WL-806).

Length = 9.75" Diameter = 3.50"
Max voltage = 3300
Max current = 300 ma
Fil voltage = 5
Fil current = 10 amps         GOTO INDEX
