801A

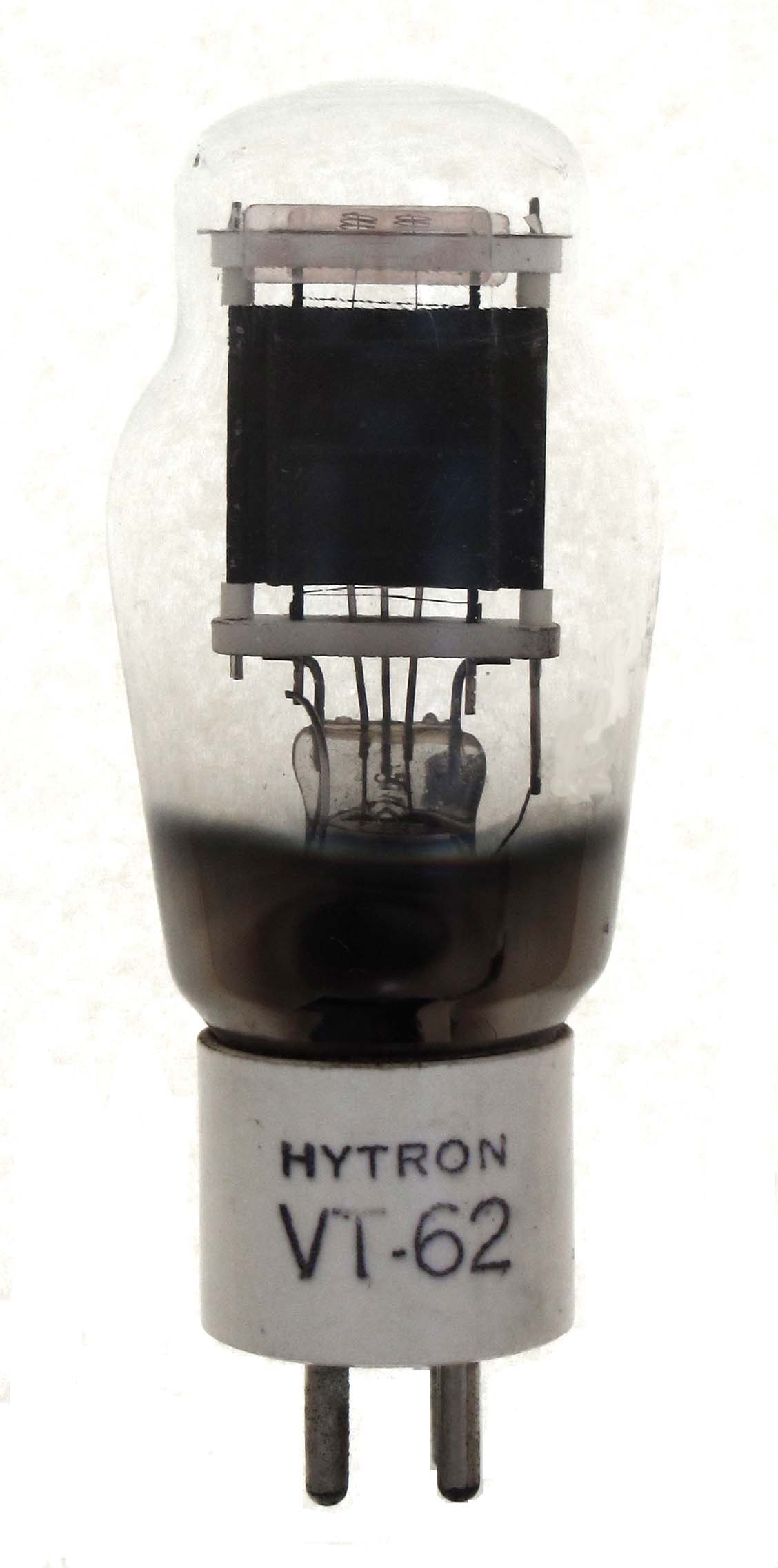

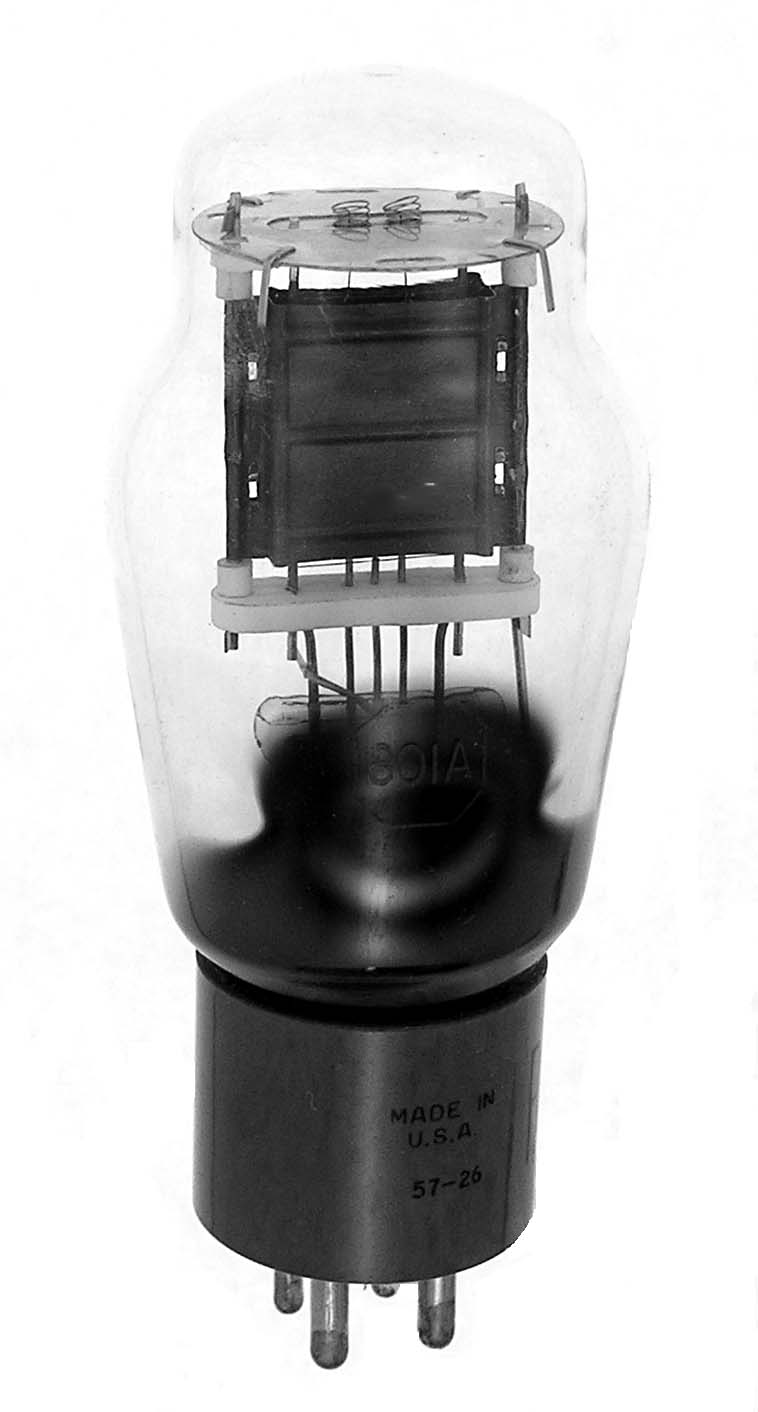

The 801A or VT-62 is a 20 watt triode with a mu of 8 that was usable up to 60 MHz. The second example is a military version made by Hytron.

Length = 5.30" Diameter = 2.00"
Max voltage = 600
Max current = 70 ma
Fil voltage = 7.5
Fil current = 1.25 amps         GOTO INDEX
