8012

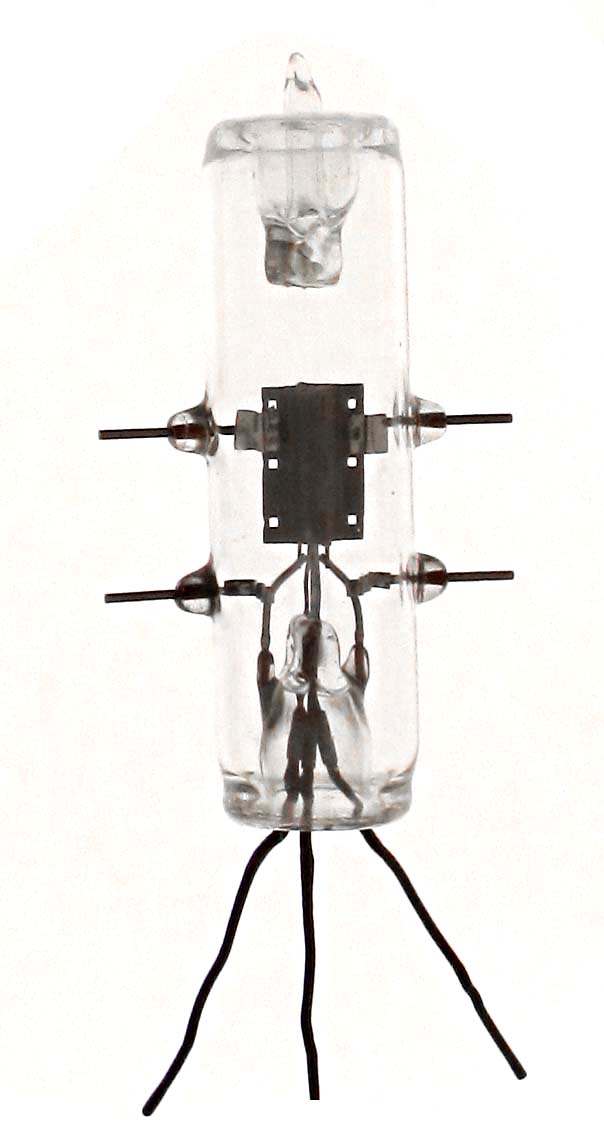

The 8012 or VT-228 is a 50 watt dissipation triode with a mu of 18 and full ratings to 500 MHz. The first example was made by Slater and the second by RCA.

Length = 3.94" Diameter = 1.19"
Max voltage = 1000
Max current = 50 ma
Fil voltage = 6.3
Fil current = 1.92 amps         GOTO INDEX
