8011

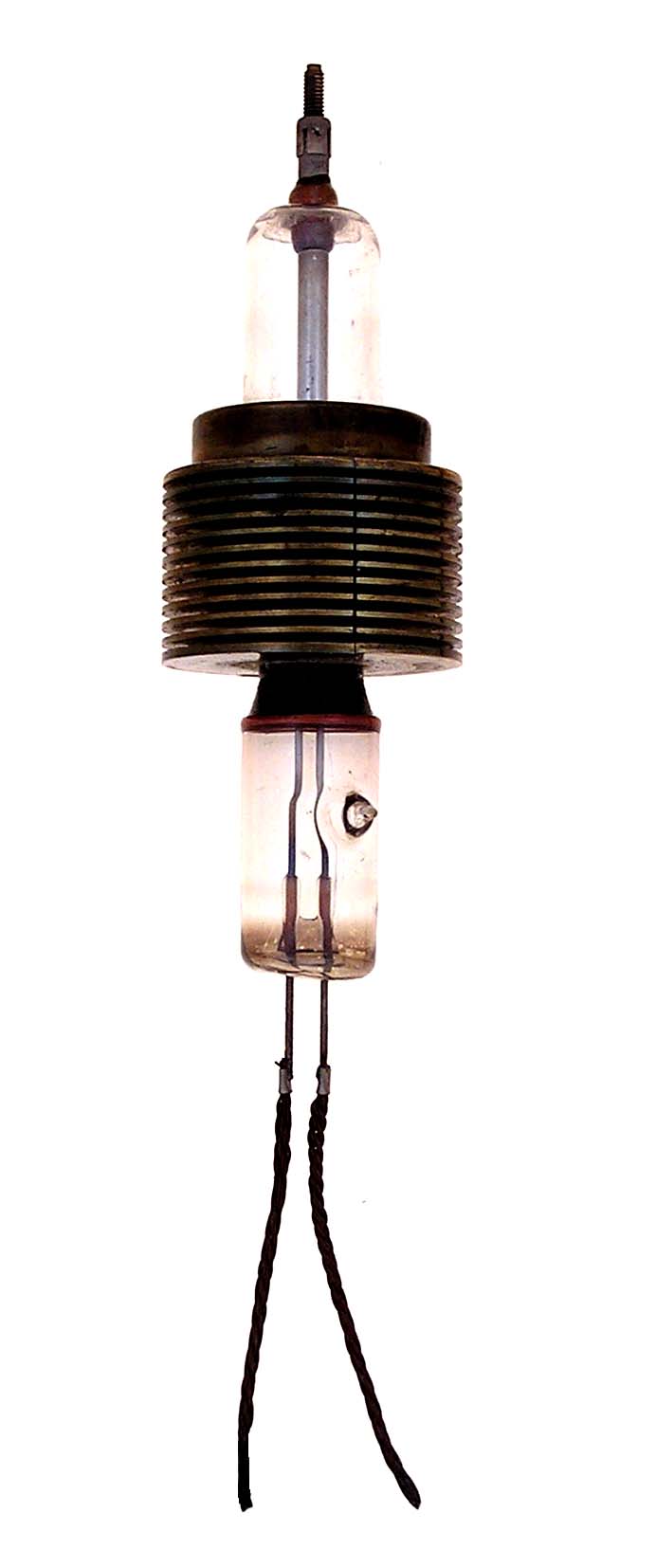

The 8011 is a 200 watt, forced air cooled, triode with a mu of 16 made by Amperex. This "Micropup" tube could be used as high as 600 MHz.

Length = 7.12" Diameter = 1.37"
Max voltage = 1000
Max current = 100 ma
Fil voltage = 8.25
Fil current = 7.1 amps         GOTO INDEX
