800

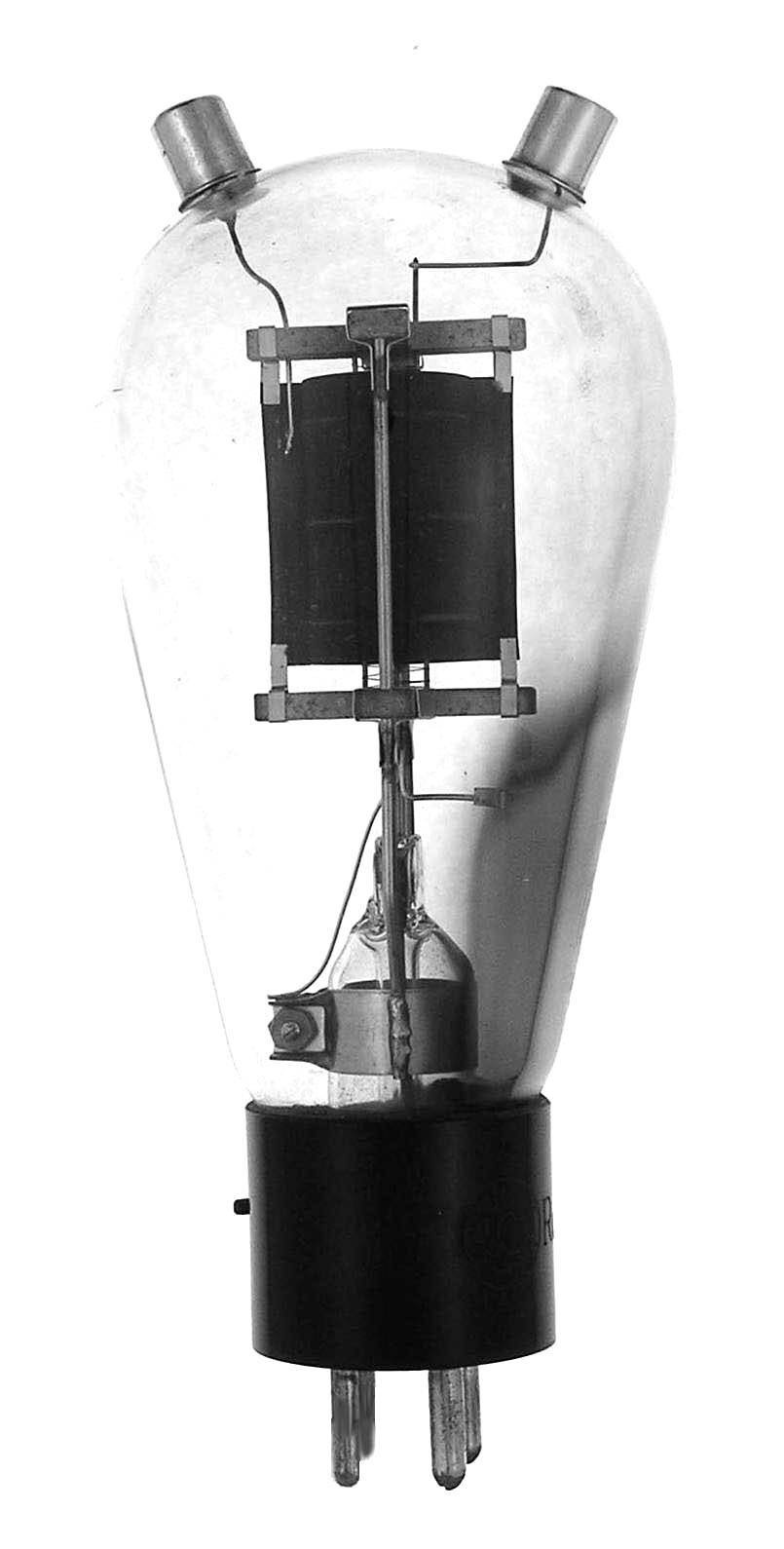

The 800 or VT-64 is a 35 watt dissipation triode with a mu of 15 and a maximum frequency of 60 MHz for full ratings. Developed by RCA in 1933.

Length = 7.25" Diameter = 2.82"
Max voltage = 1250
Max current = 80 ma
Fil voltage = 7.5
Fil current = 3.1 amps         GOTO INDEX
