7698R

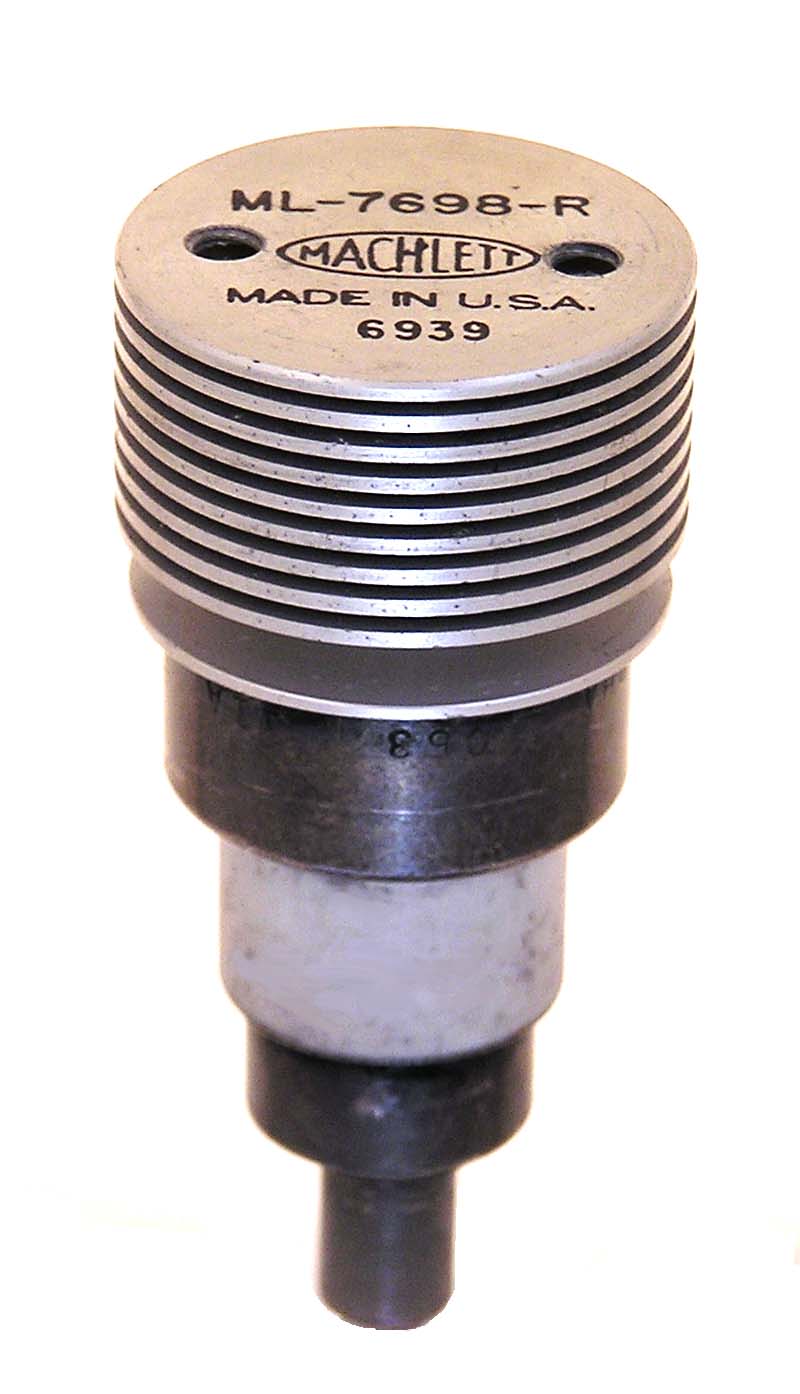

The 7698R is a 100 watt triode with a full rating frequency of 3.5 GHz and a mu of 80. The 7698 is the same tube without the cooler and is rated at 10 watts dissipation. The 7698R may have replaced the 7211.

Length = 2.75" Diameter = 1.27"
Max voltage = 3500
Max current = 5 amps pulse
Fil voltage = 6.3
Fil current = 1.3 amp         GOTO INDEX
