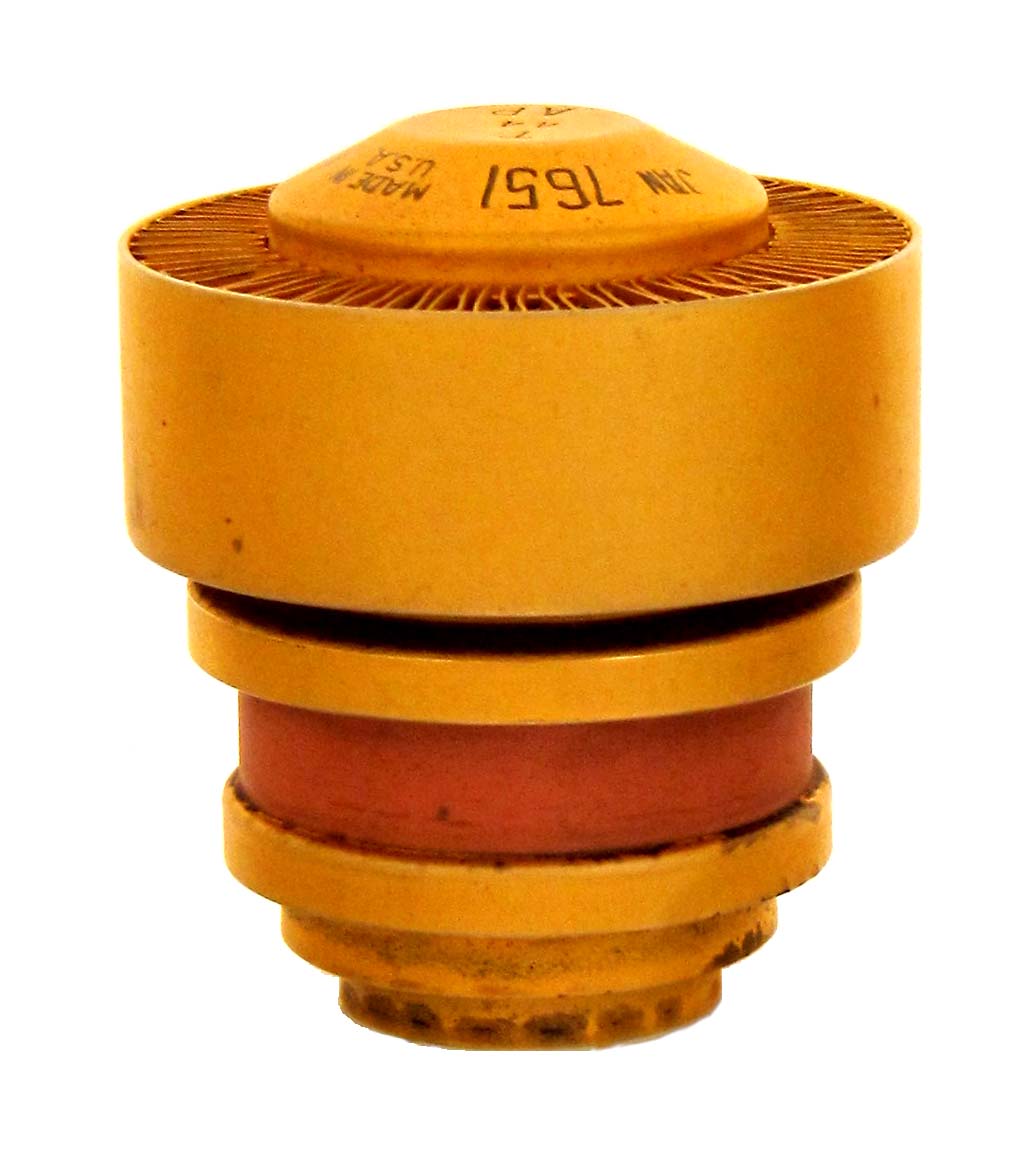

7651

The 7651 is a 600 watt forced air cooled tetrode with full ratings to 1225 MHz. Designed for pulse operation with a 27 KW pulse output.

Length = 2.31" Diameter = 2.06"
Max voltage = 8000
Max current = 9 amp pulse
Fil voltage = 6.3
Fil current = 7.85 amps         GOTO INDEX
