75TL

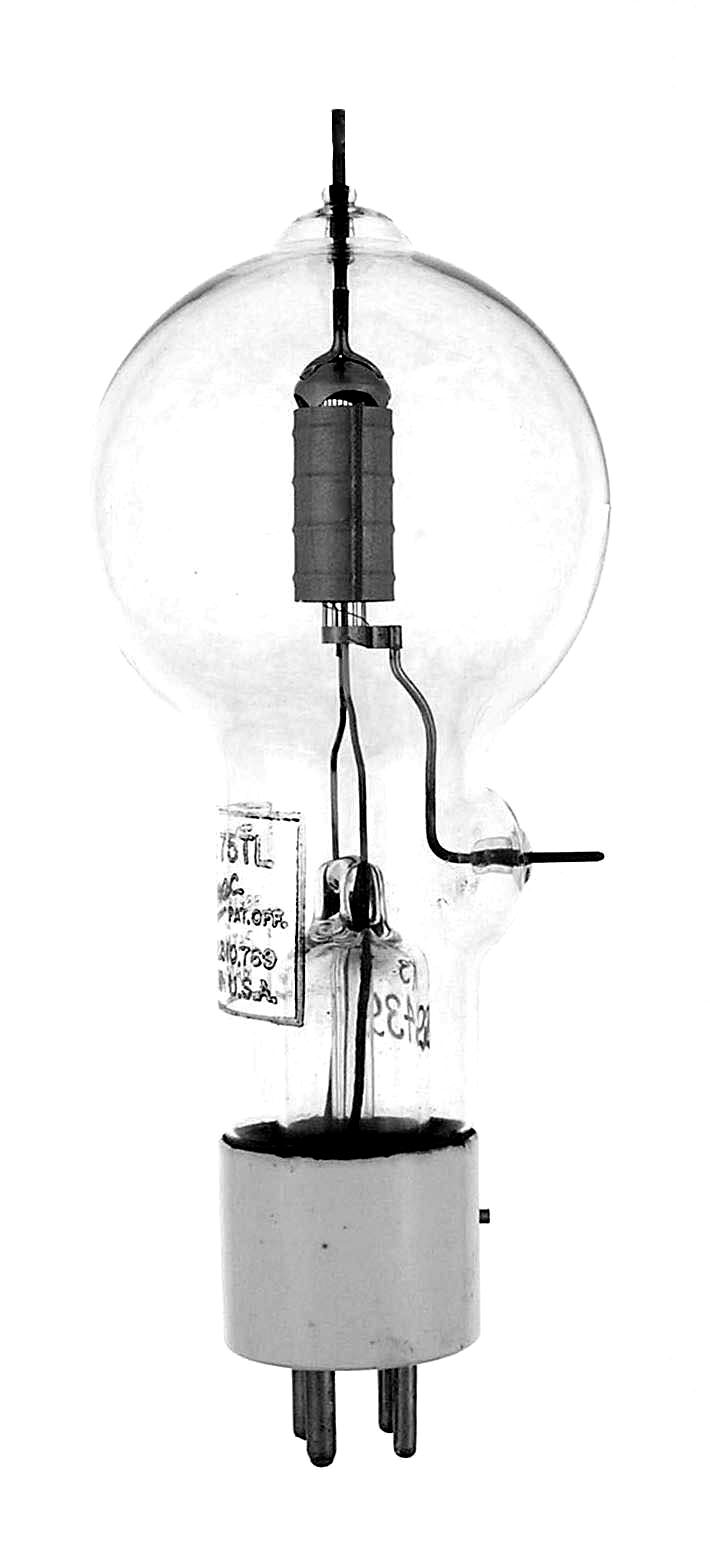

The 75TL ia a low (12) mu, 75 watt dissipation triode made by Eimac. Full ratings to 40 MHz.

Length = 7.25" Diameter = 2.82"
Max voltage = 3000
Max current = 225 ma
Fil voltage = 5
Fil current = 6.25 amps         GOTO INDEX
