7402

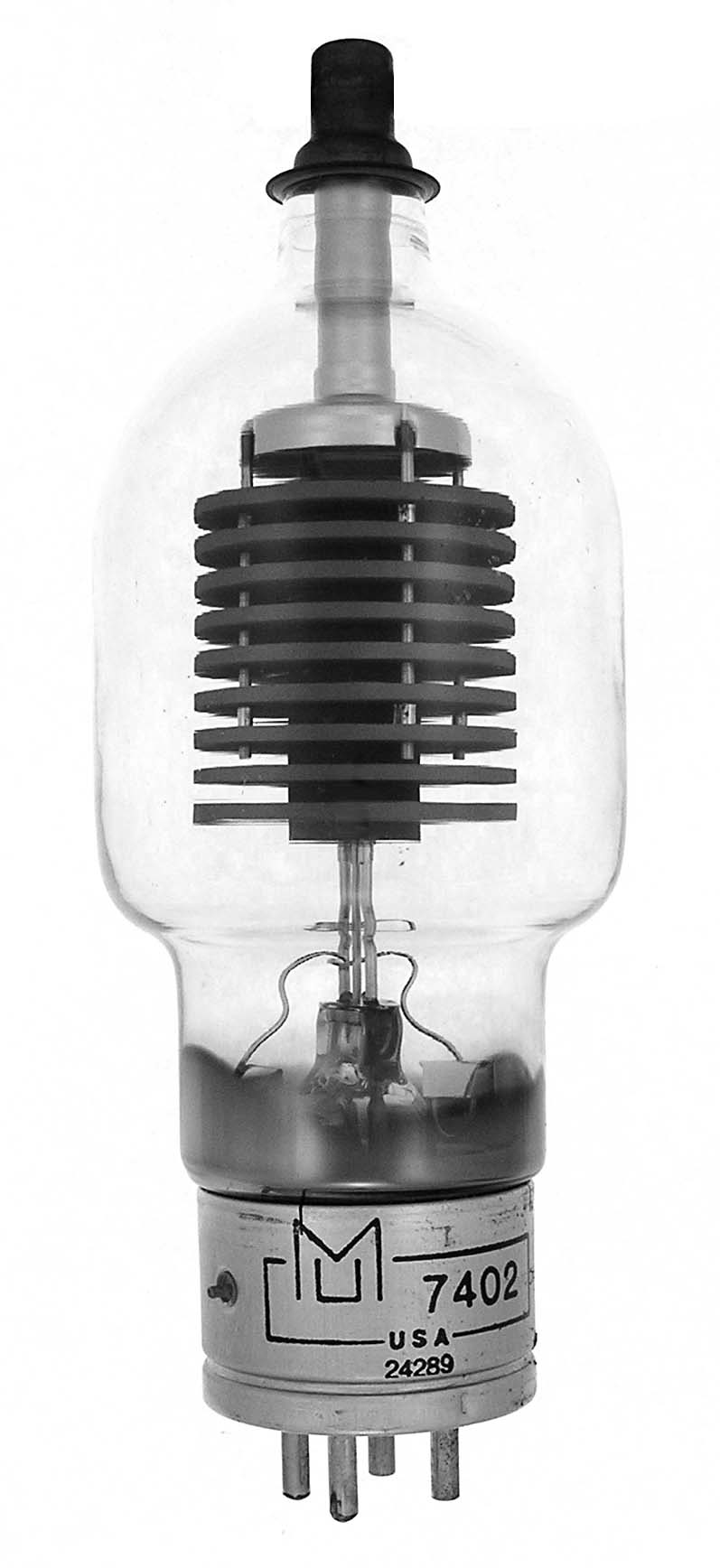

The 7402 is a 450 watt high voltage rectifier designed for clipper diode service. Developed and registered by United this diode is rated at 300 G shock. This example was made by MU Inc. in California.

Length = 9.50" Diameter = 3.37"
Max voltage = 33000 PIV
Max current = 860 ma
Fil voltage = 11.5
Fil current = 15.25 amps
JEDEC registration 3992         GOTO INDEX
