7209

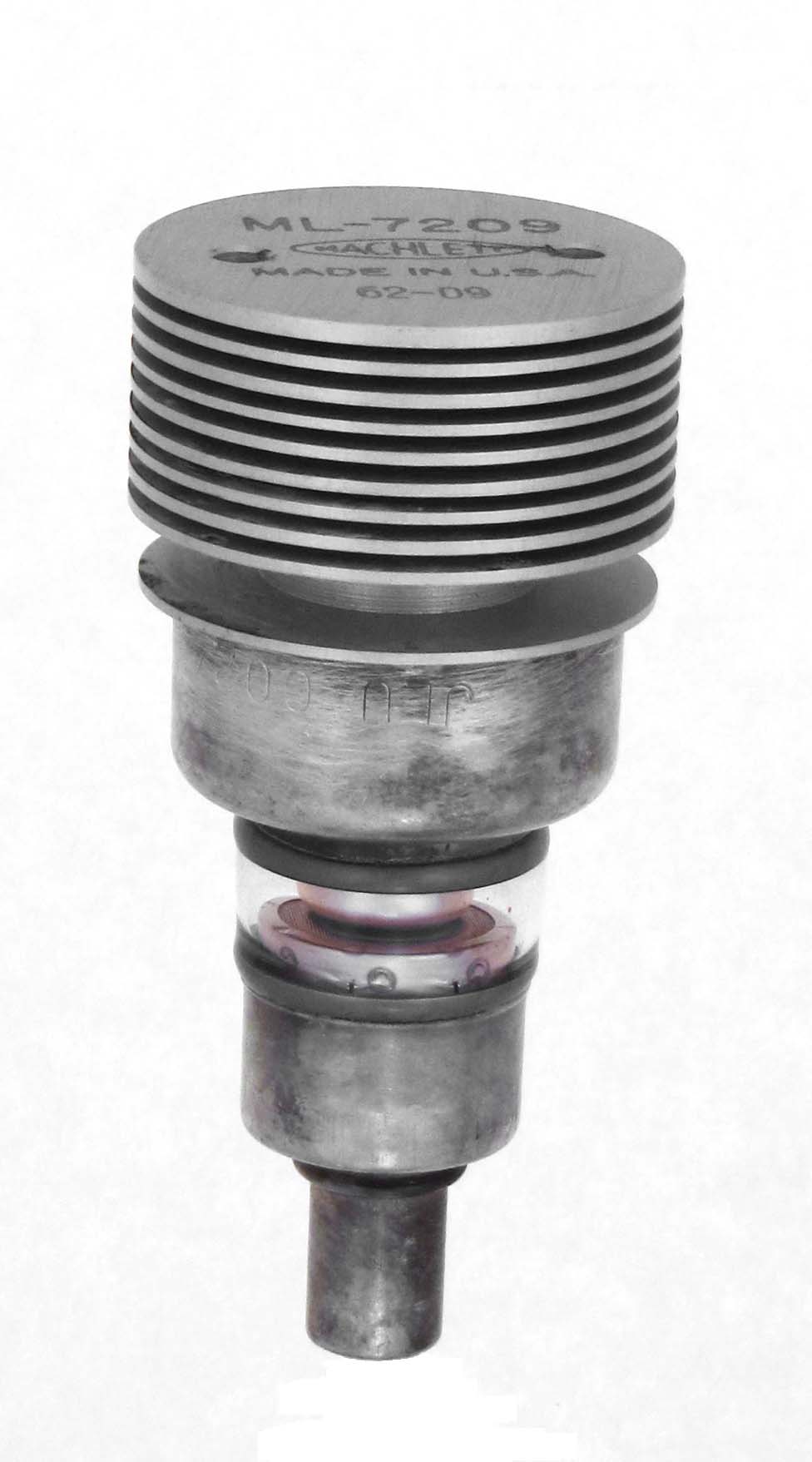

The 7209 is a 100 watt, planar triode with a full rating frequency of 3 GHz and a mu of 100 designed for pulse service. This example was made by Machlett (ML-7209).

Length = 2.75" Diameter = 1.27"
Max voltage = 3500
Max current = 3 amps pulse, 6.5 ma average
Fil voltage = 6
Fil current = 1 amp         GOTO INDEX
