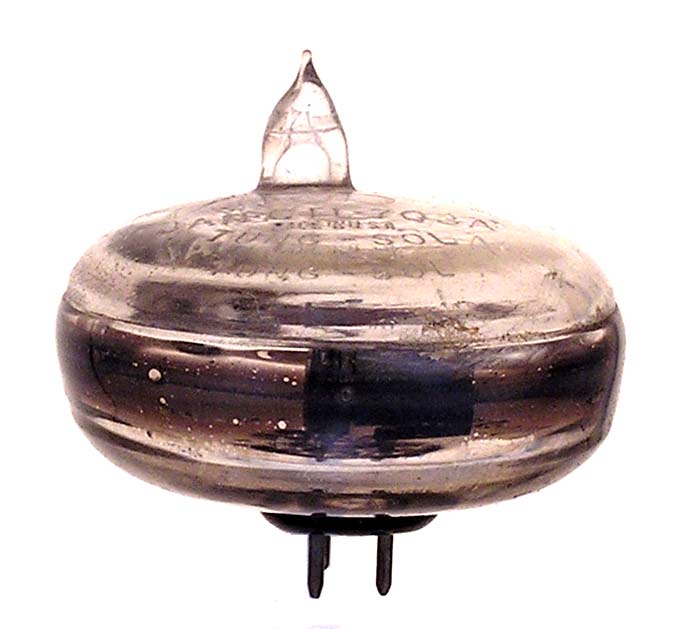

703A

The 703A is a 25 watt triode designed for very high frequency up to 1000 MHz. Used in RADAR jamming equipment.

Length = 1.87" Diameter = 2.00"
Max voltage = 450
Max current = 57 ma
Fil voltage = 1.15
Fil current = 4.5 amp         GOTO INDEX
