7034/4X150A

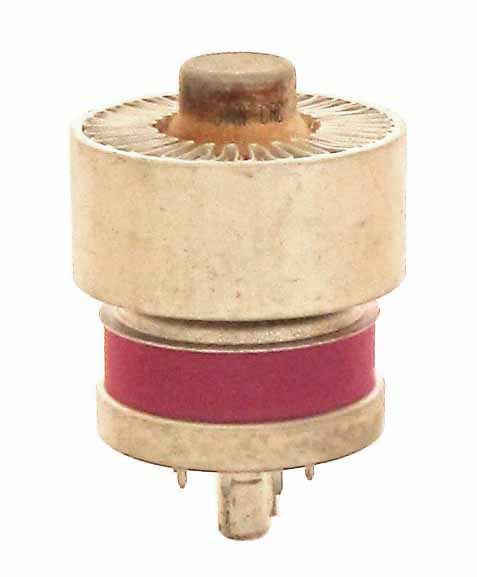

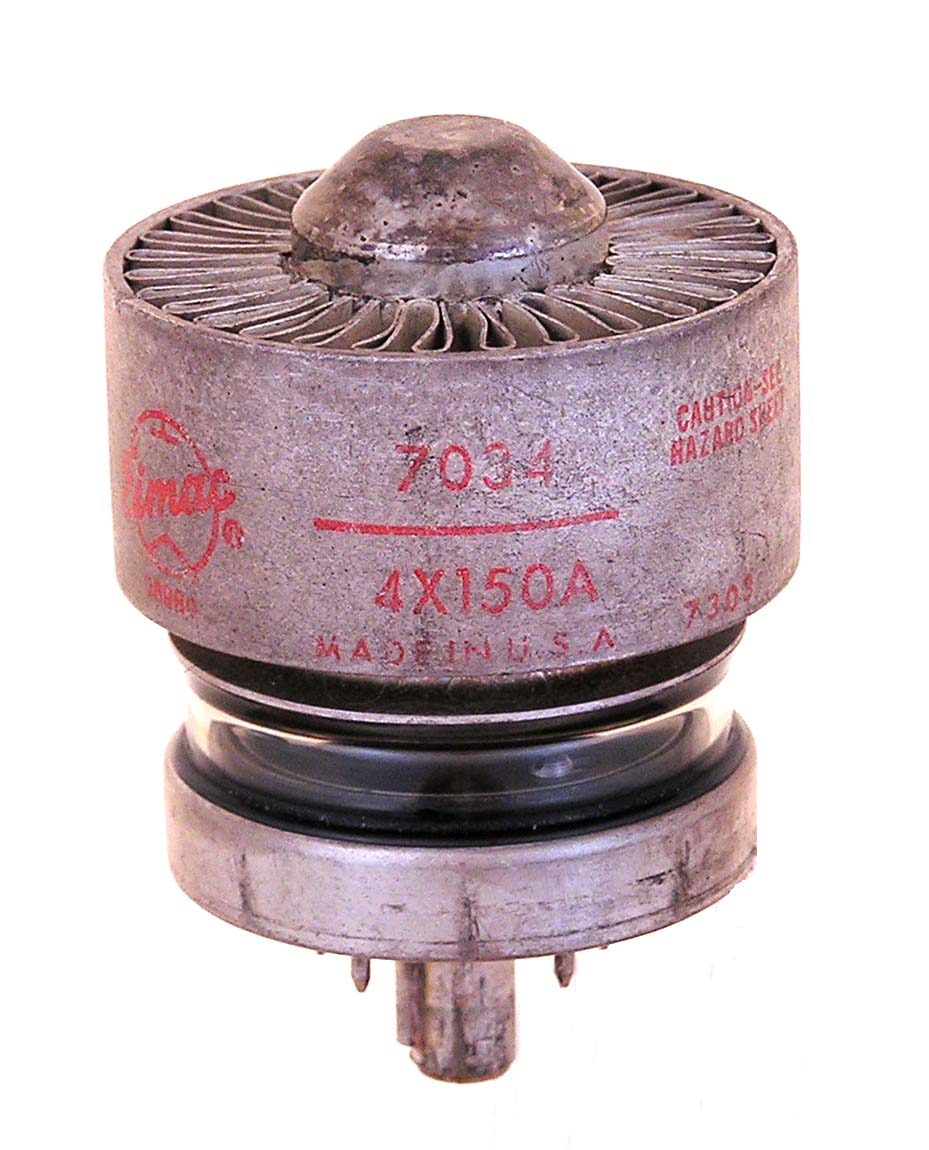

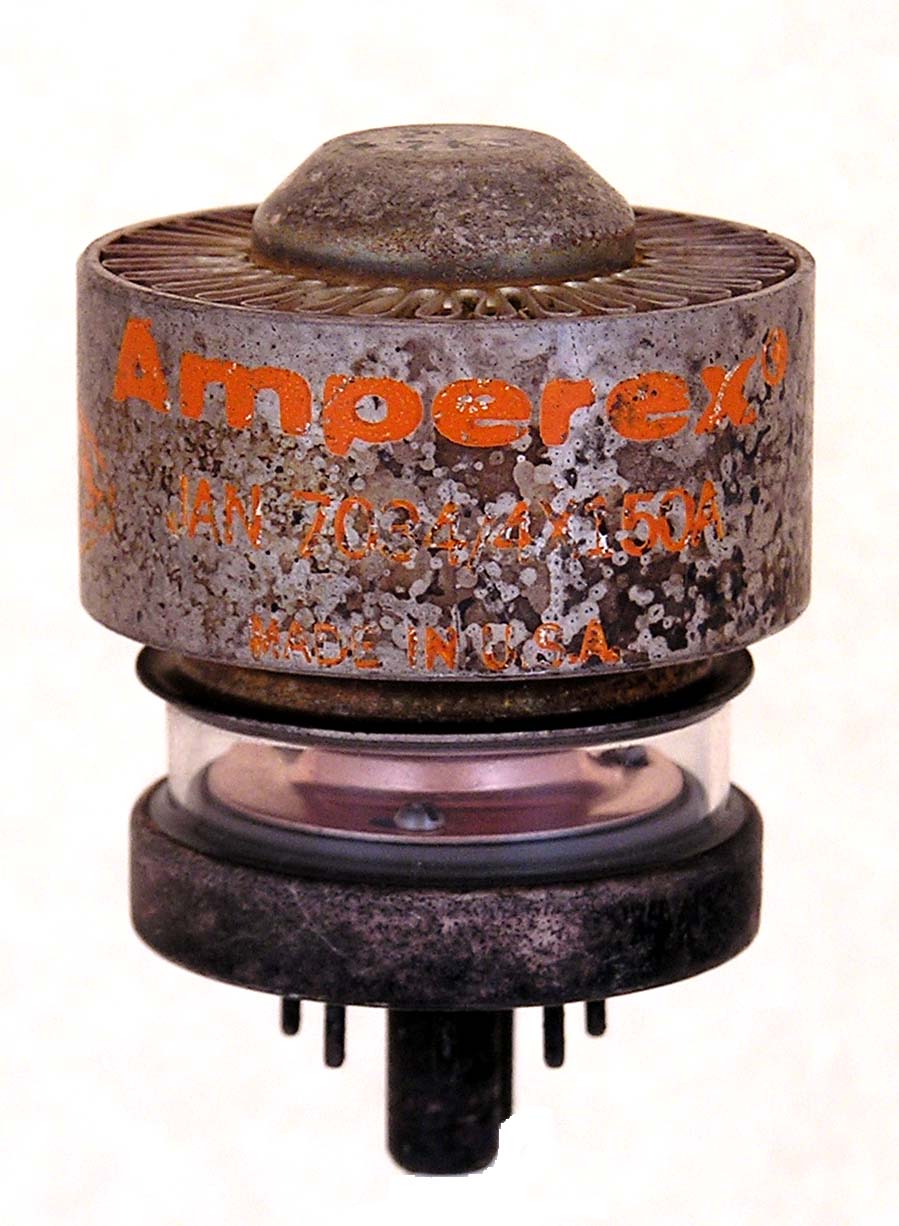

The 7034/4X150A is a 250 watt, forced air cooled, power tetrode with a full rating frequency of 150 MHz . This is an uprated version of the original 4X150A. The second example was made by Amperex and the third is a ceramic version made by RCA.

Length = 2.47" Diameter = 1.64"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 6
Fil current = 2.6 amps         GOTO INDEX
