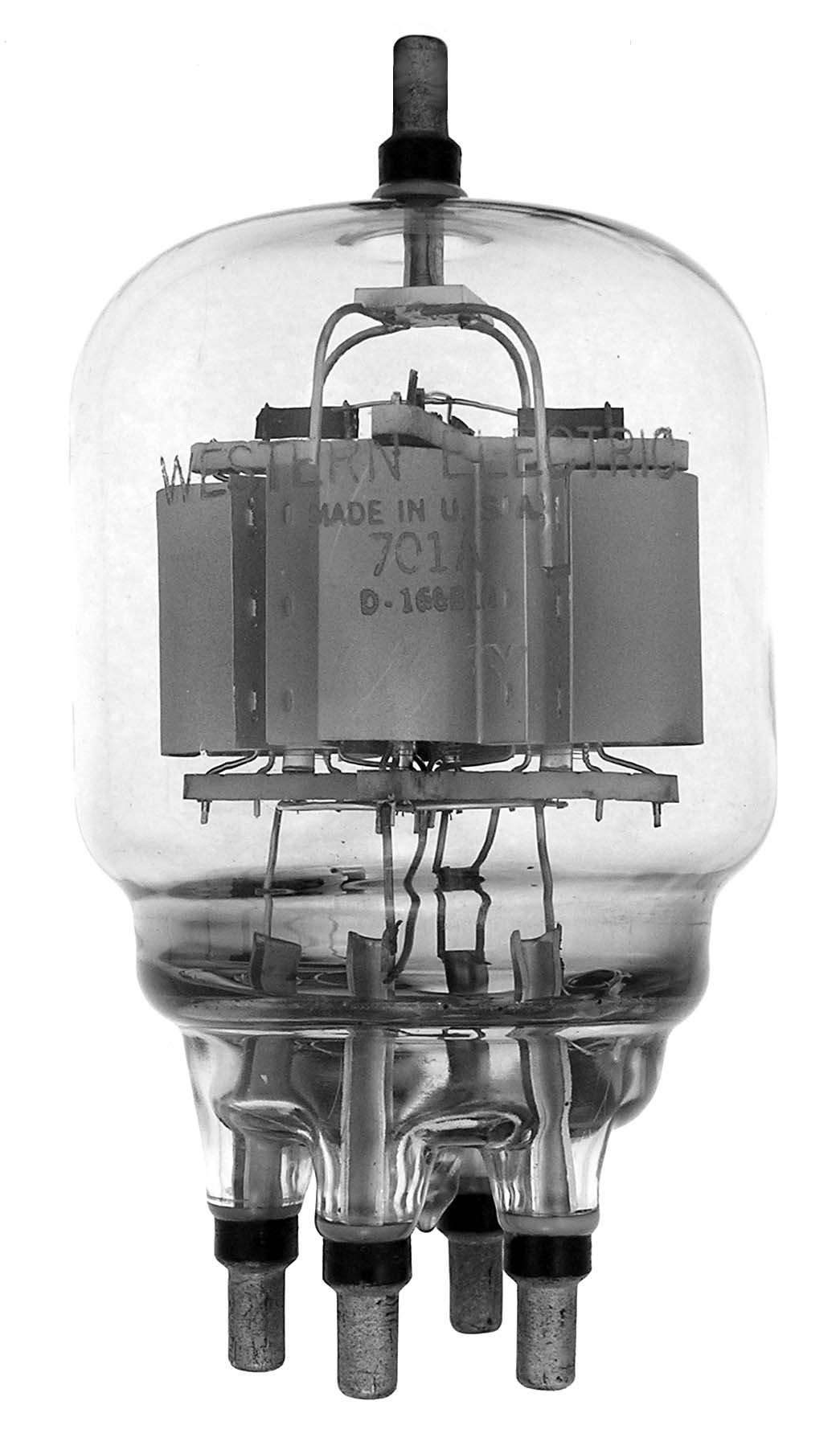

WE701A

The 701A is a 100 watt, high peak power tetrode made by paralleling separate 350A tubes in the same envelope. Used as a pulse modulator.

Length = 7.50" Diameter = 3.75"
Max voltage = 12.6 kV peak pulse
Max current = 12 amps peak
Fil voltage = 8
Fil current = 7.5 amps         GOTO INDEX
