6989

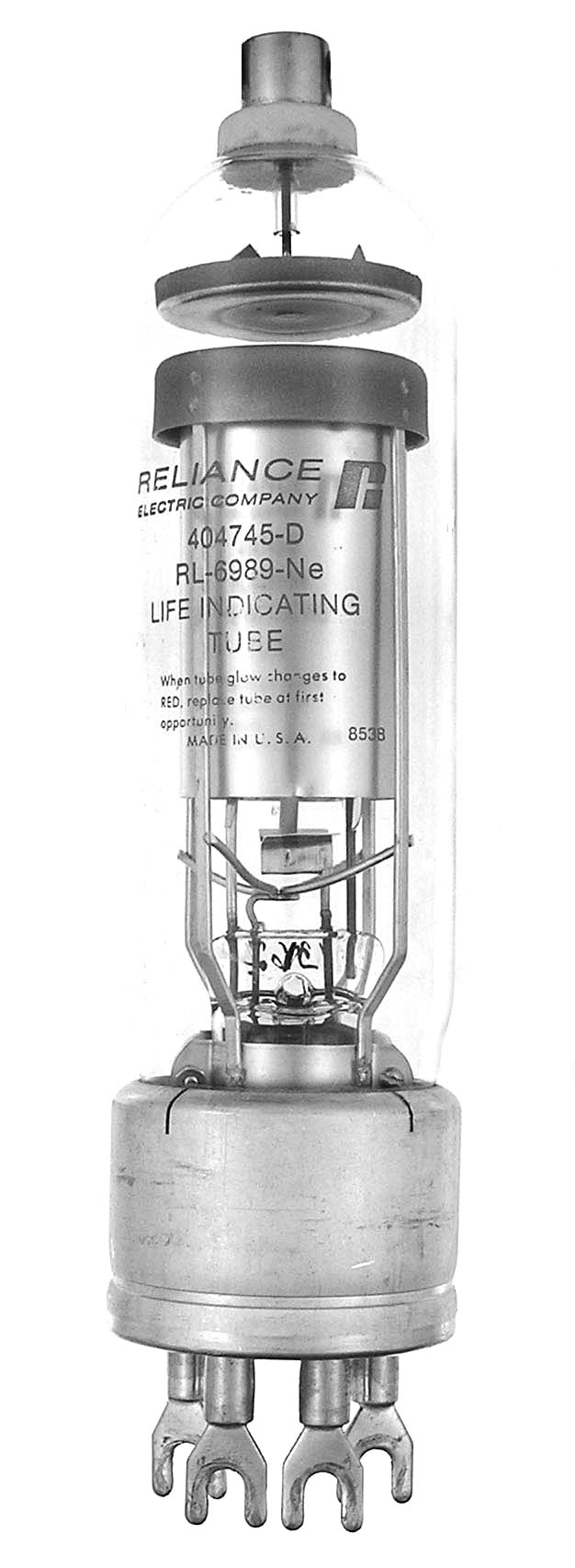

The 6989 (RL-6989-Ne) is a xenon triode thyratron. It is a 5685 with lug base.

Length = 9.00" Diameter = 2.12"
Max voltage = 750 to 1000
Max current = 6.4 amps
Fil voltage = 2.5
Fil current = 18 amps         GOTO INDEX
