6979

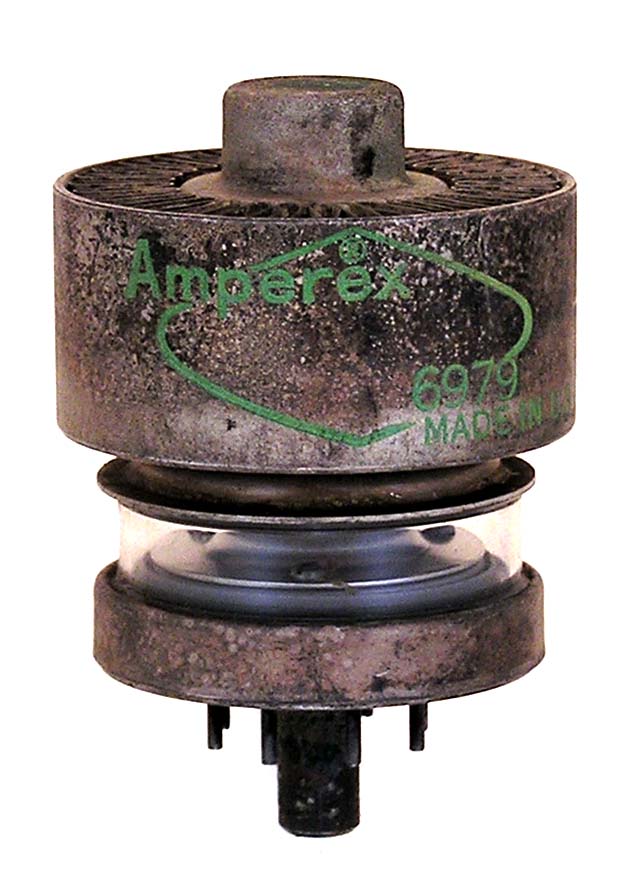

The 6979 is a 250 watt, forced air cooled, power tetrode with a full rating frequency of 150 MHz made by Amperex. Designed to replace the 4X150A in applications requiring higher plate dissipation.

Length = 2.47" Diameter = 1.64"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 6
Fil current = 2.6 amps         GOTO INDEX
