6800A

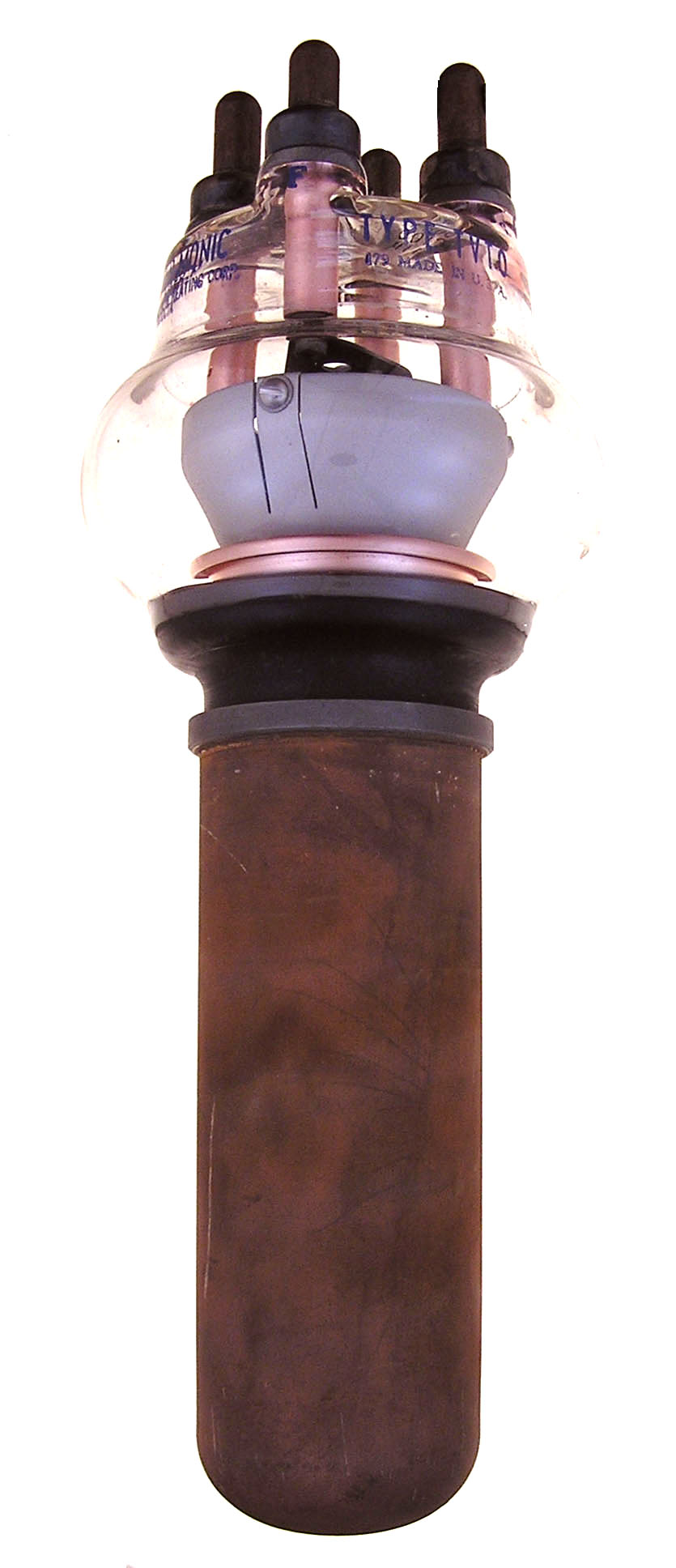

The 6800A is a 20 Kw water-cooled triode with a mu of 19.5 and a maximum frequency of 22.5 MHz. It was designed for industrial heating applications. This example is marked TVTO THER-MONIC.

Length = 12.50" Diameter = 4.37"
Max voltage = 15000
Max current = 3.5 amps
Fil voltage = 7.5
Fil current = 107 amps         GOTO INDEX
