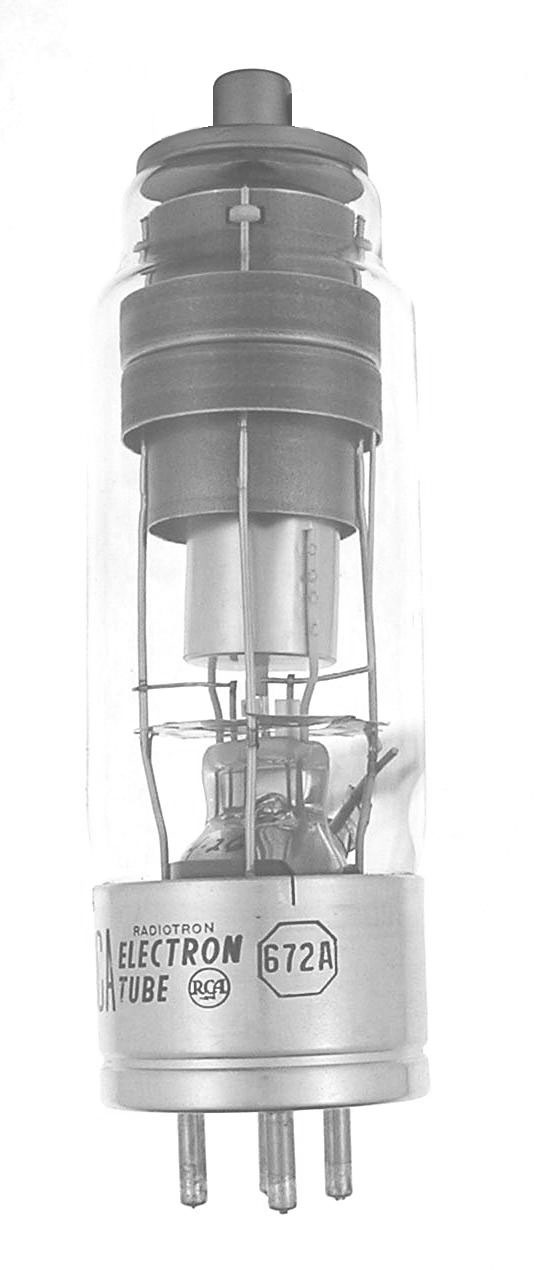

672A

The 672A is a mercury vapor tetrode thyratron designed for control service.

Length = 7.63" Diameter = 2.12"
Max voltage = 2500 forward and inverse anode volts peak
Max current = 40 amps peak
Fil voltage = 5
Fil current = 5 amps         GOTO INDEX
