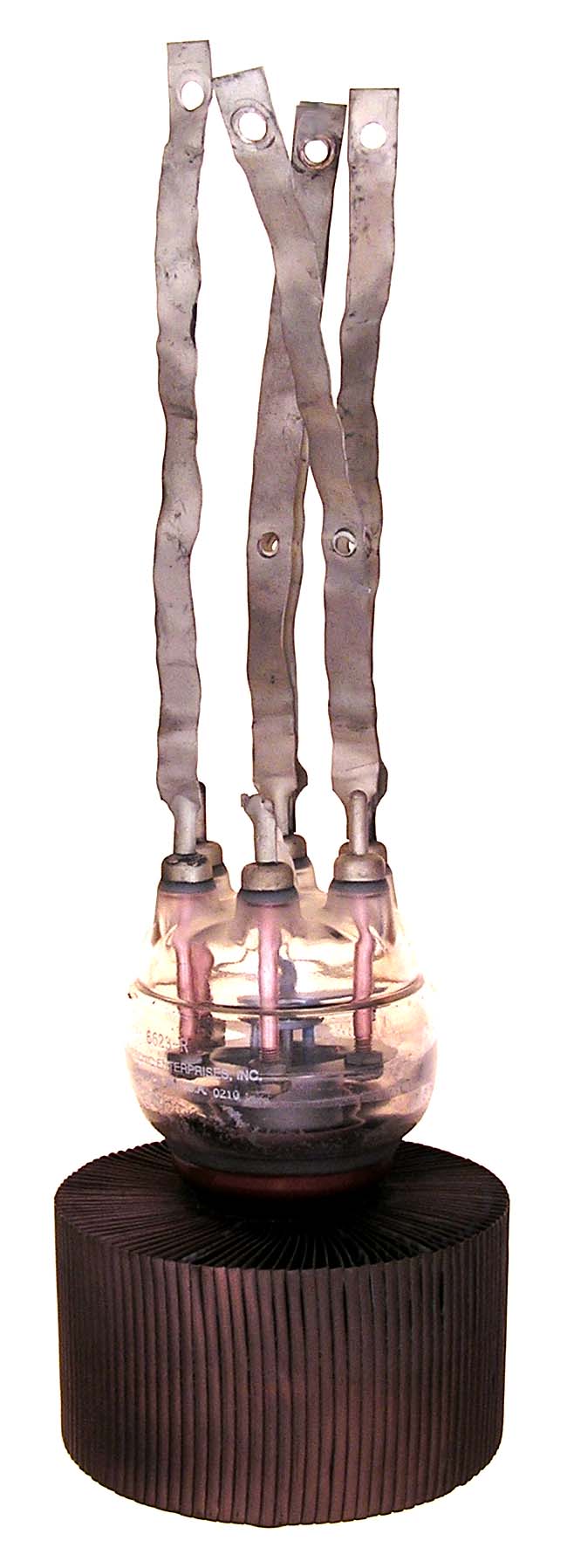

6623-R

The 6623-R is a 2500 watt, air cooled, triode with a mu of 22 and a maximum frequency for full output of 60 MHz. The 6623 was released by Westinghouse in 1955. This example was made by Electronic Enterprises.

Length = 7.50" (less leads) Diameter = 4.63"
Max voltage = 9300
Max current = 2.3 amps
Fil voltage = 6
Fil current = 63 amps         GOTO INDEX
