6426

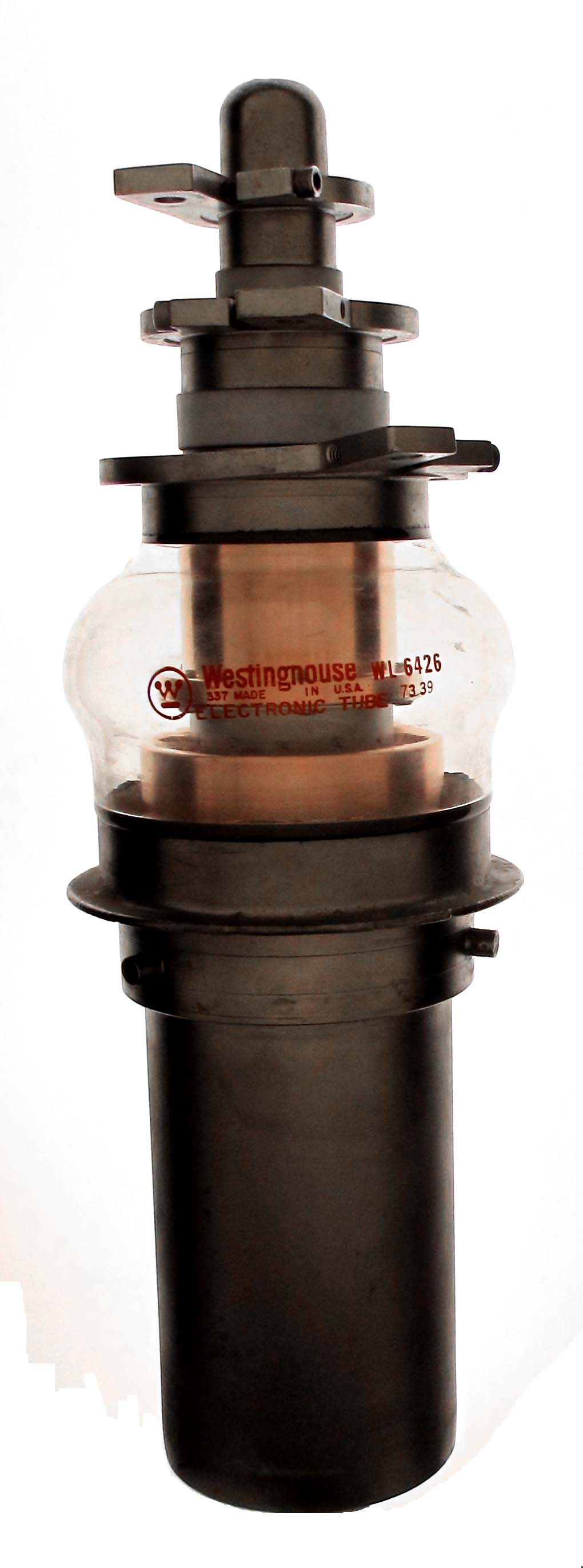

The 6426 is a 40 KW, water cooled power triode with a mu of 20. This example was made by Westinghouse (WL6426). The 6427 is the same tube with forced air cooling fins.


Length = 15.75" Diameter = 5.00"
Max voltage = 12500
Max current = 7 amps
Fil voltage = 8
Fil current = 200 amps         GOTO INDEX
