6399

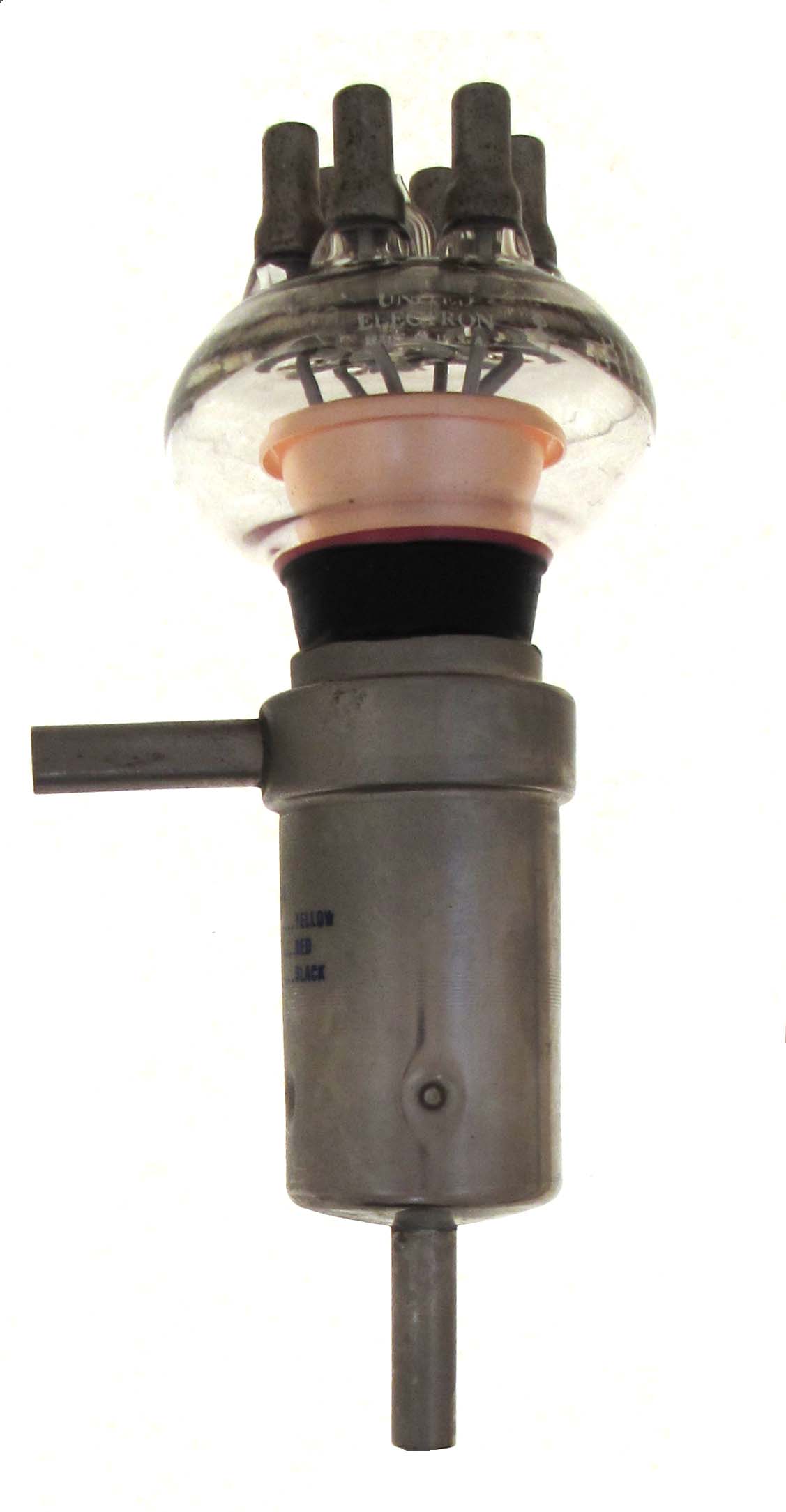

The 6399 is a 6000 watt power triode with a mu of 25. It requires water cooling and operates at full ratings to 30 MHz. This example was made by United Electron (BY1121).


Length = 8.50" Diameter = 3.12" Glass bulb
Max voltage = 6000
Max current = 1.5 amps
Fil voltage = 11
Fil current = 29 amps         GOTO INDEX
