6383

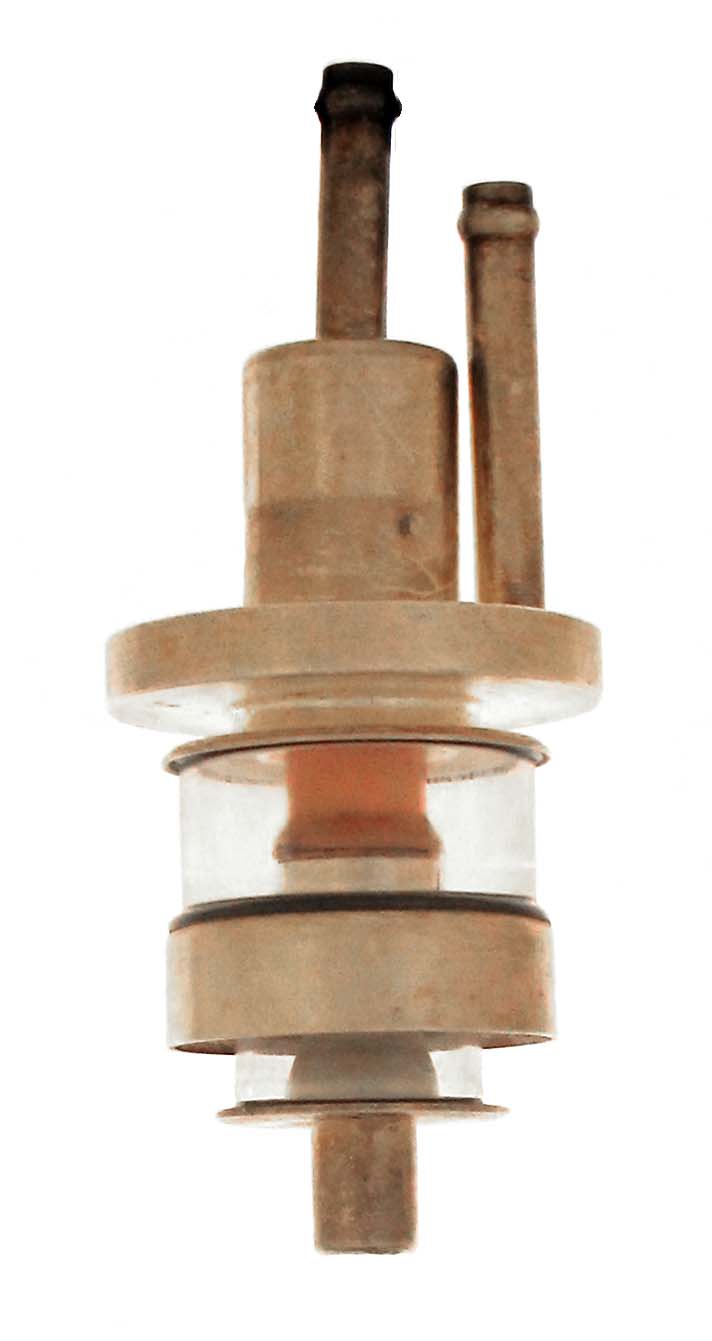

The 6383 is a 600 watt water cooled triode with a mu of 27 and is useable to 2 GHz designed by RCA. This is a liquid cooled version of the 6161.

Length = 4.19" Diameter = 1.75"
Max voltage = 1500
Max current = 400 ma
Fil voltage = 6.3
Fil current = 3.4 amps         GOTO INDEX
