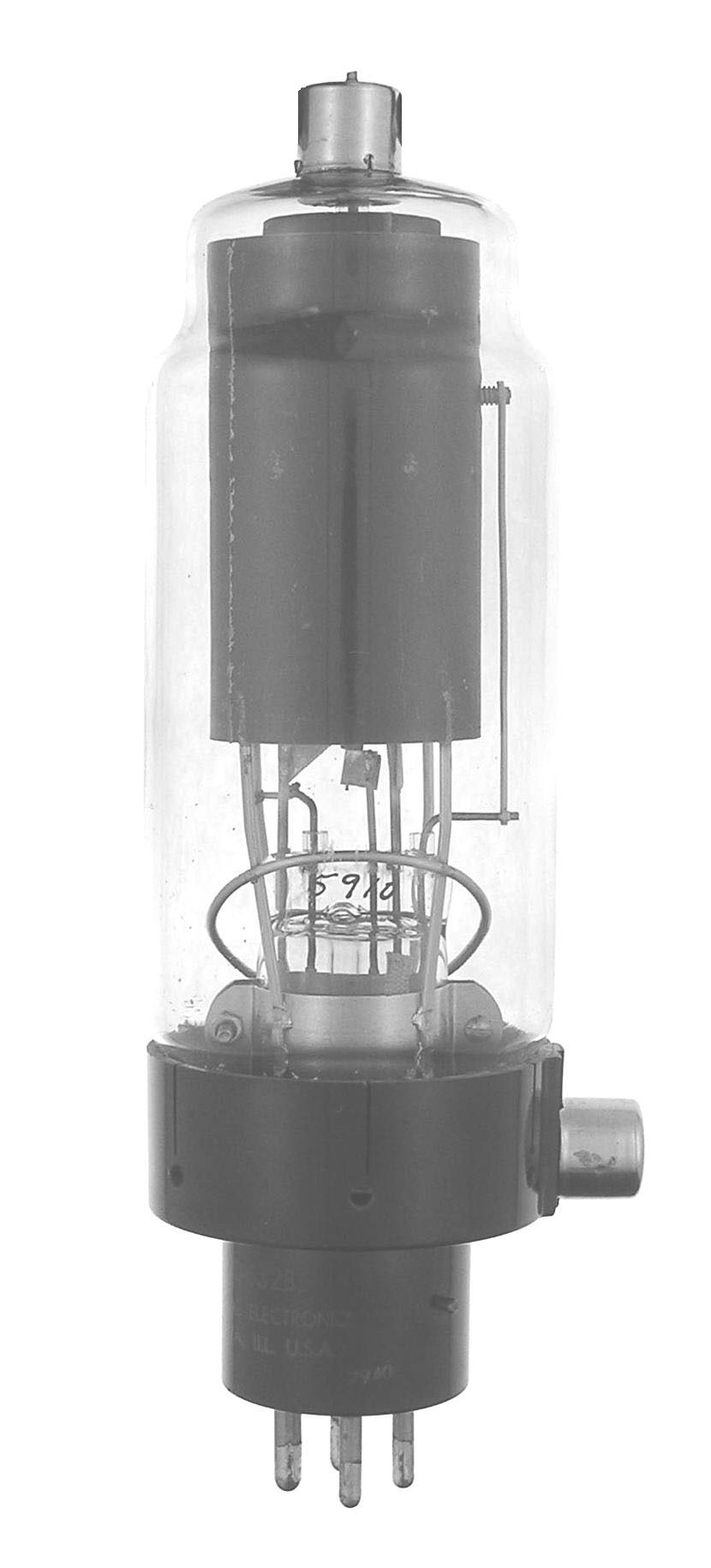

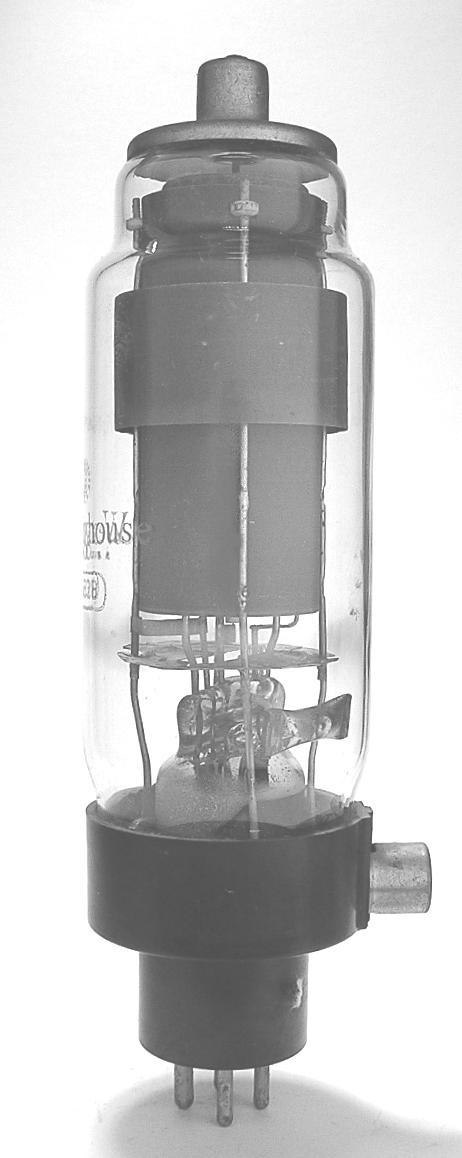

The 632B is a mercury vapor tetrode designed for ignitor firing applications. The first example was made by Westinghouse and the second by National.
Length = 8.32" Diameter = 1.75"
Max voltage = 1500 forward, 1500 inverse
Max current = 30 peak cathode amps
Fil voltage = 5
Fil current = 5 amps GOTO INDEX
