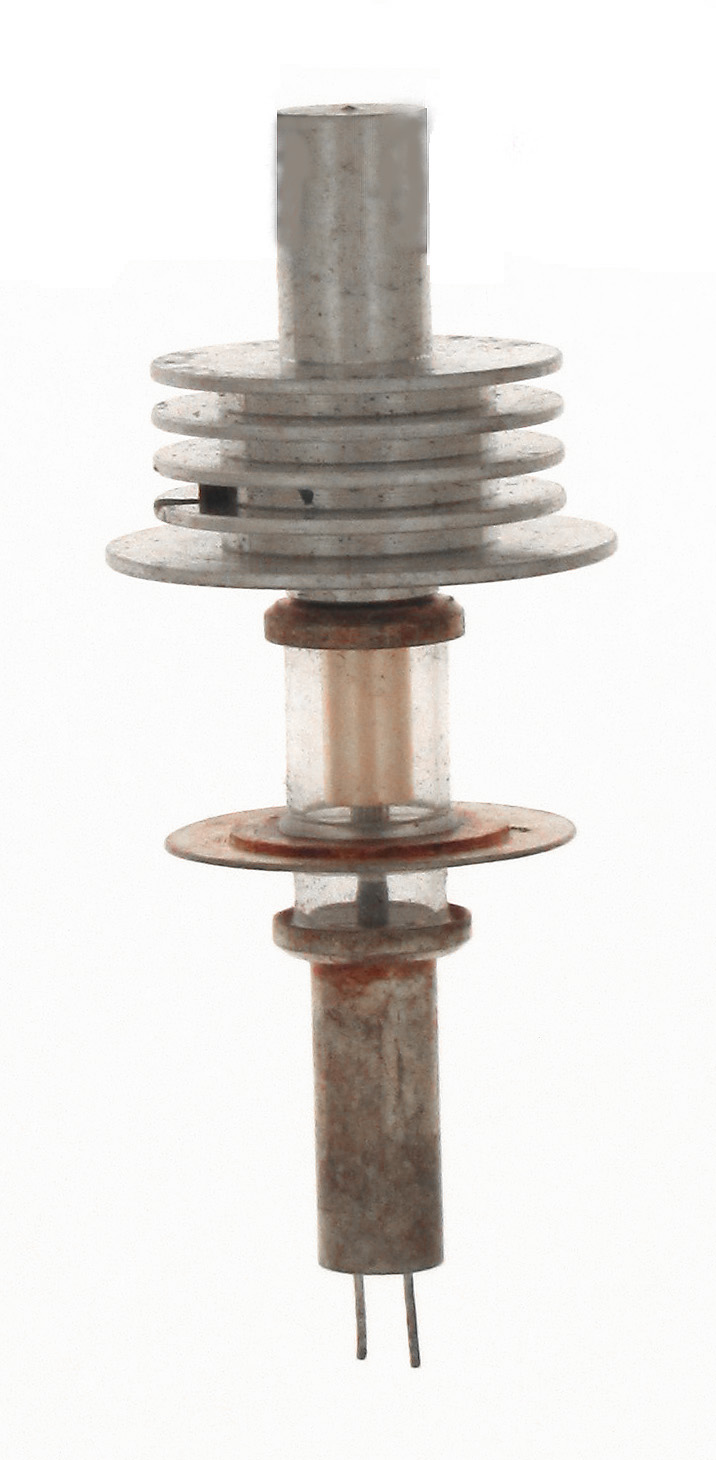

6263A

The 6263A is a 13 watt pencil type triode with a mu of 27 that was designed for amplifier and oscillator circuits. It will give full output to 500 MHz and reduced output to 1700 MHz.

Length = 2.34" Diameter = 1.01"
Max voltage = 400
Max current = 55 ma
Fil voltage = 6
Fil current = .28 amps         GOTO INDEX
