6076

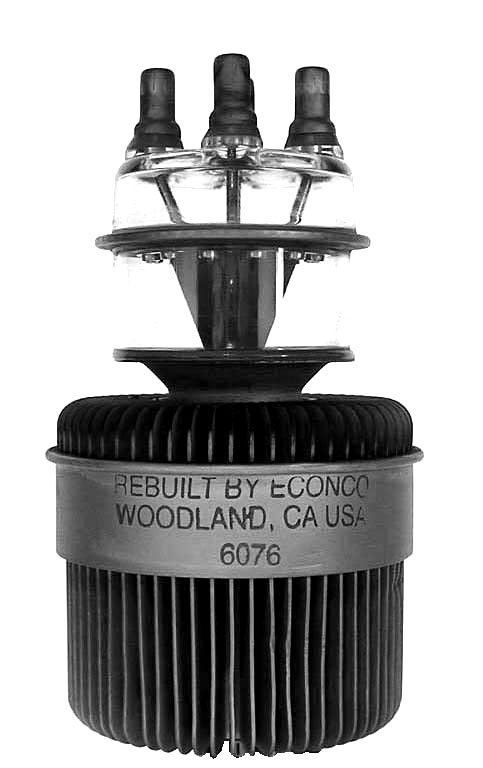

The 6076 is a forced air cooled power tetrode designed for VHF amplifier applications. Maximum ratings to 220 MHz. The 6075 is the same tube with a water jacket.


Length = 6.87" Diameter = 3.50"
Max voltage = 4000
Max current = 1.8 amps
Fil voltage = 6.3
Fil current = 33 amps         GOTO INDEX
