5-Y-35

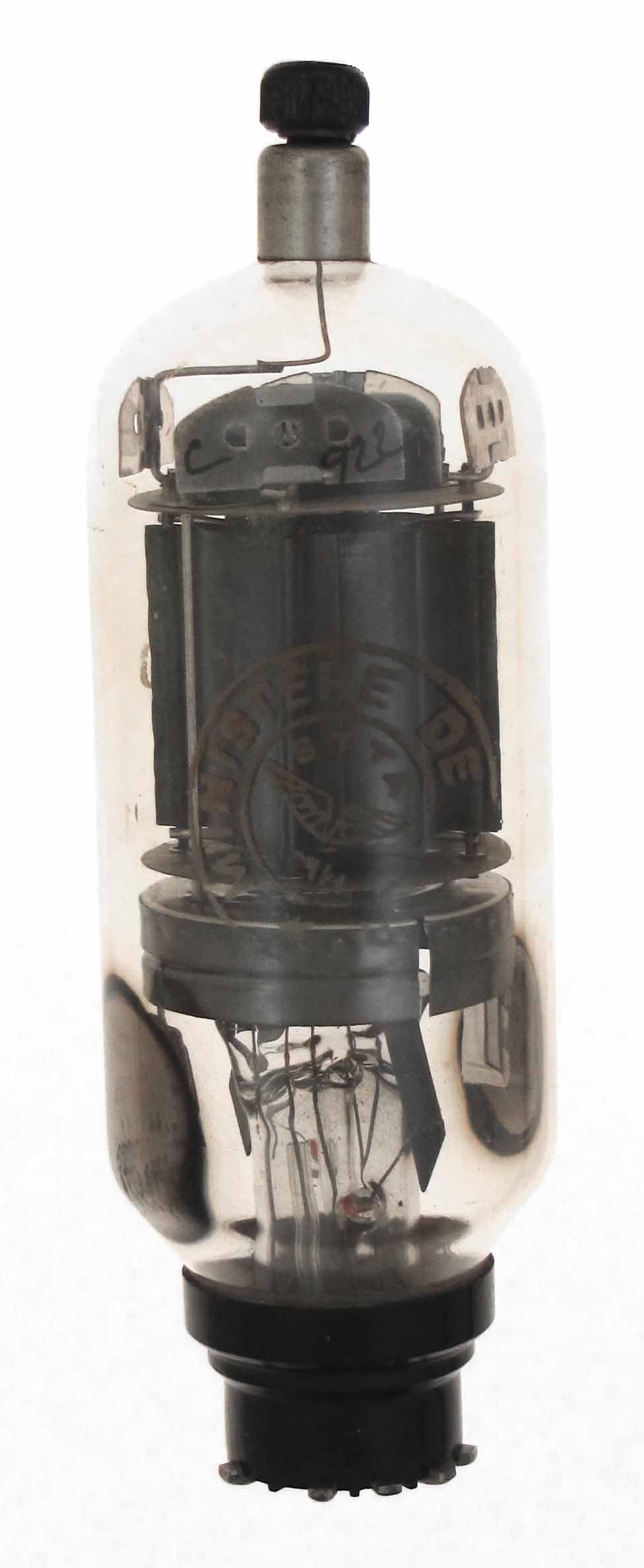

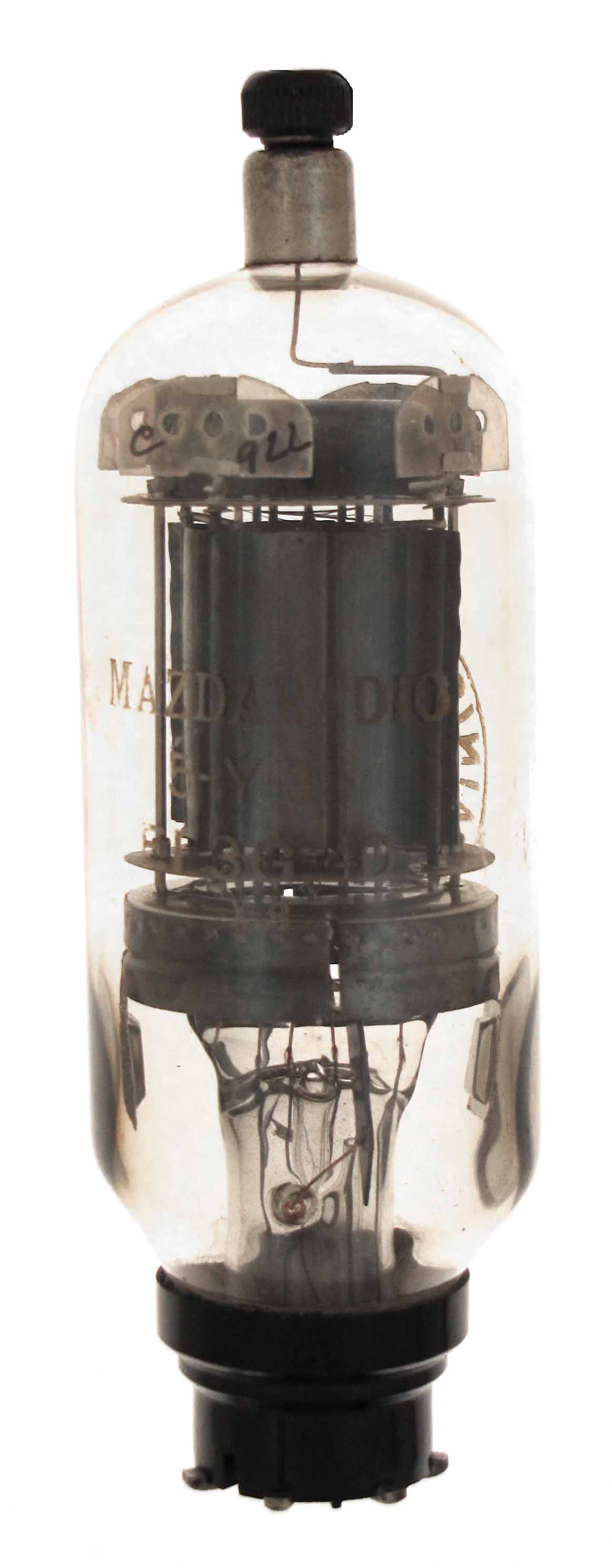

The 5-Y-35 is a 30 watt pentode with full power to 20 mHz. Made by Mazda in France.

Length = 5.87" Diameter = 1.75"
Max voltage = 1000
Max current = 120 ma
Fil voltage = 24
Fil current = .45 amps         GOTO INDEX
