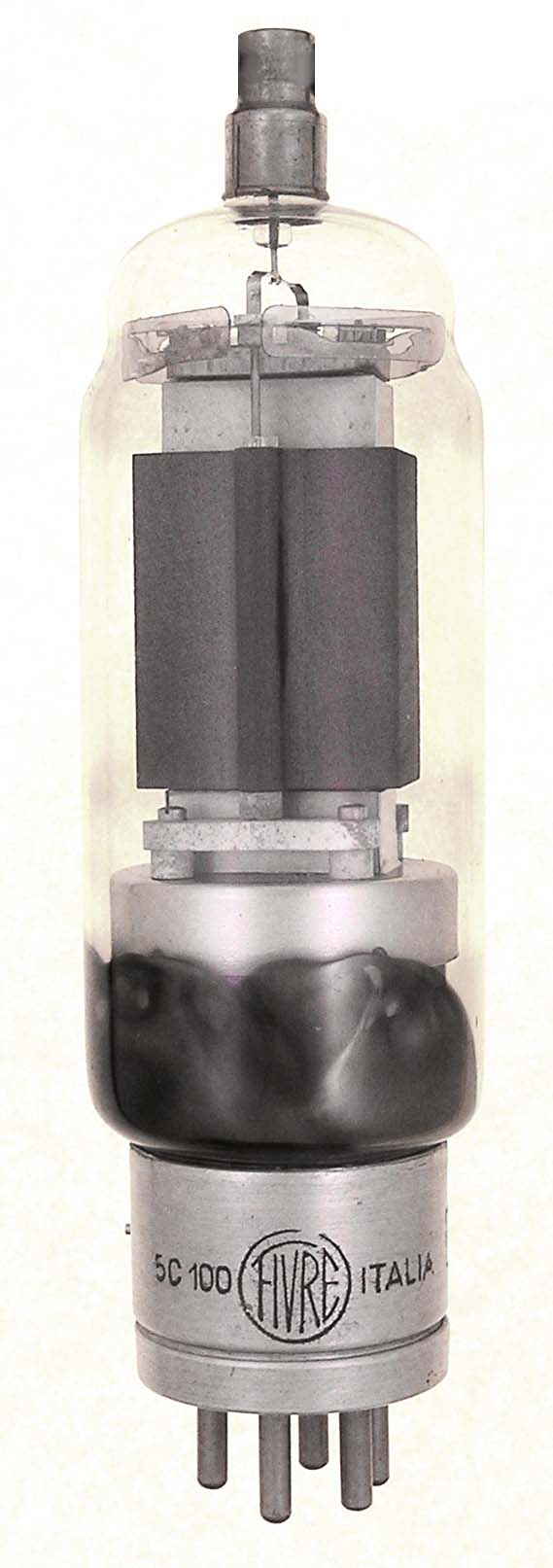

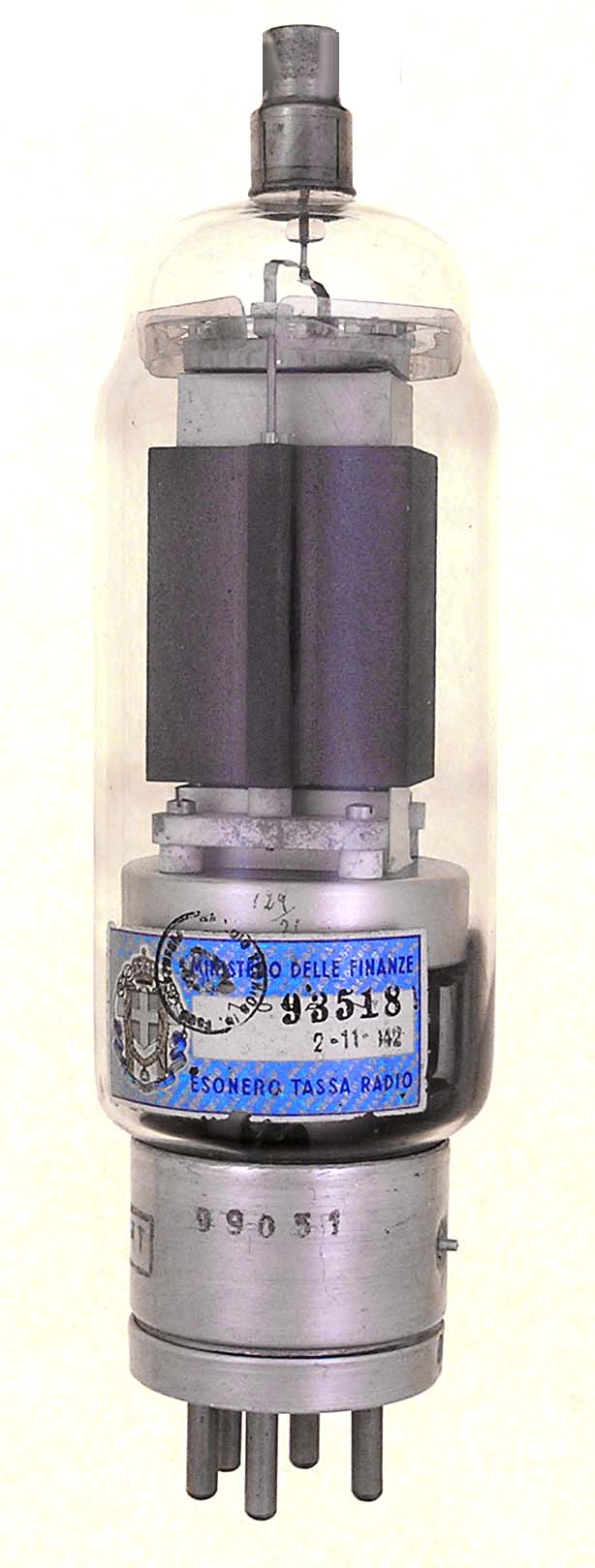

5C100

The 5C100 is a 100 watt pentode with a maximum frequency of 15 MHz for full output built by FIVRE for the Italian military in WWII. This type has 5 base pins.

Length = 8.38" Diameter = 2.13"
Max voltage = 1500
Max current = 150 ma
Fil voltage = 12
Fil current = 2.7 amps         GOTO INDEX
