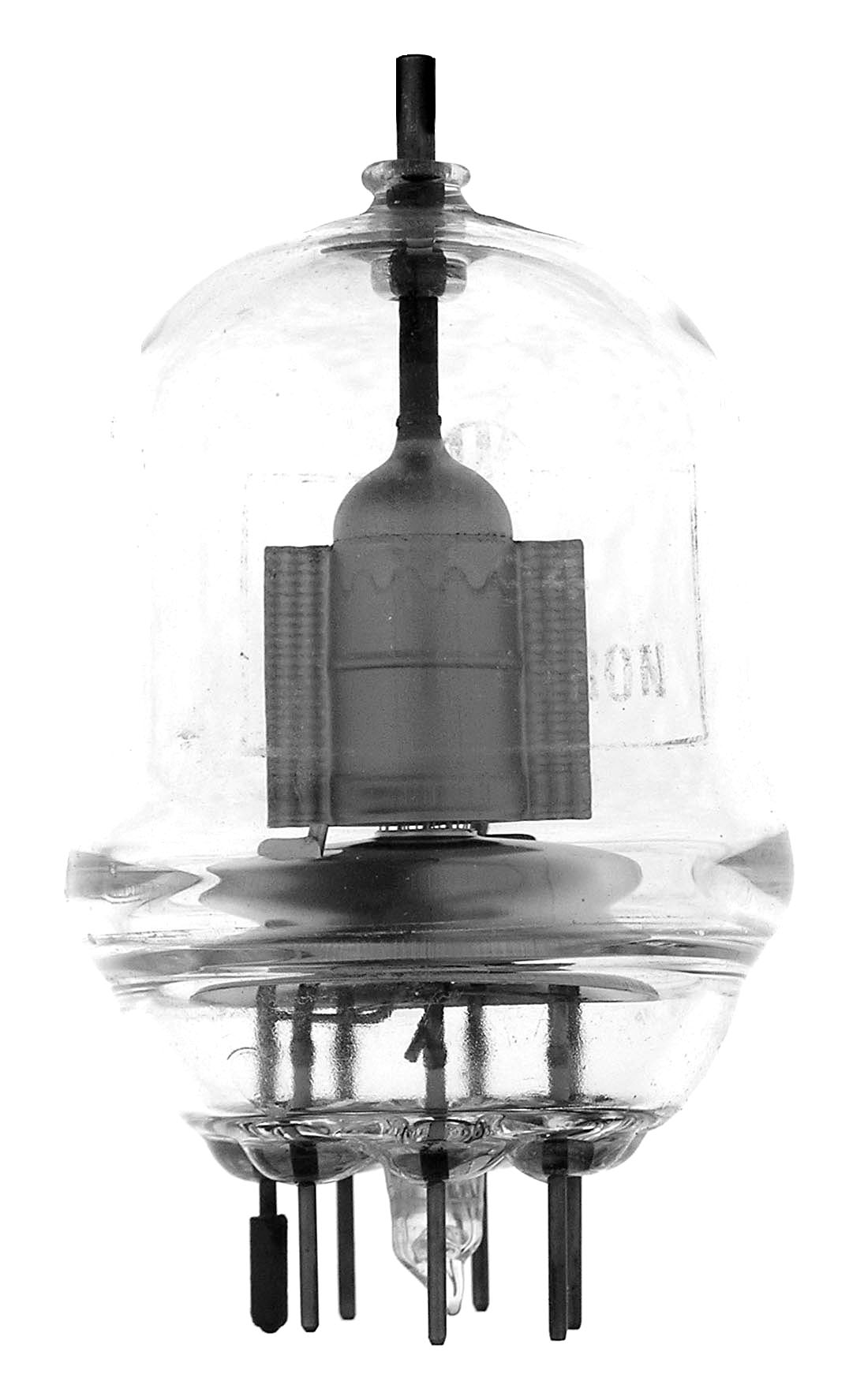

5994

The 5994 is a 50 watt pentode designed for VHF applications with full ratings to 120 MHz. Very similar to the HK-57 except it has a shorter anode pin.

Length = 4.06" Diameter = 2.37"
Max voltage = 3000
Max current = 150 ma
Fil voltage = 5
Fil current = 5 amps         GOTO INDEX
