5924/A

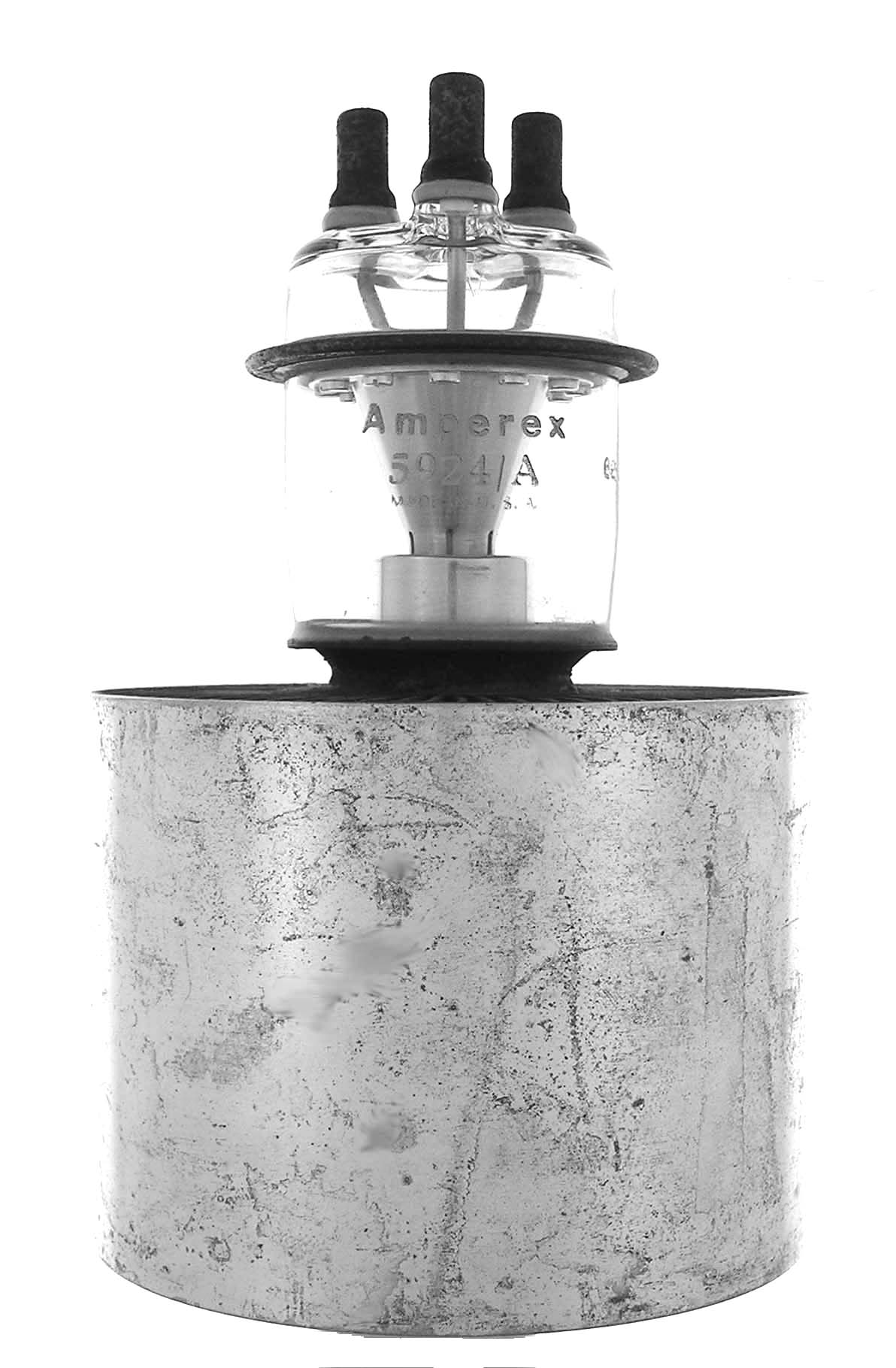

The 5924/A is a 6000 watt power triode with a mu of 35. It requires forced air cooling and operates at full ratings to 220 MHz. The 5924 (AX-9904-R) is rated at 5000 watts. The 5923 (AX-9904) is basically a water cooled version of the same tube.


Length = 7.50" Diameter = 4.75"
Max voltage = 6000
Max current = 1.5 amps
Fil voltage = 12.6
Fil current = 33 amps         GOTO INDEX
