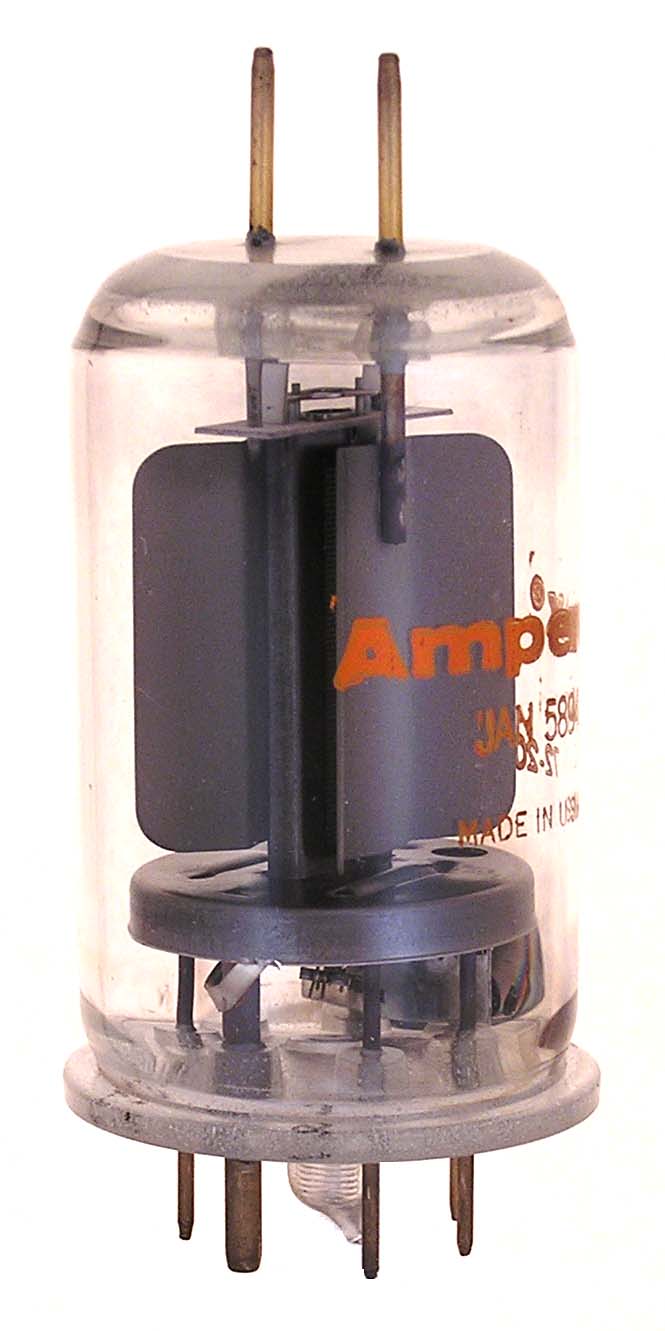

5894

The 5894 is a 40 watt dual tetrode designed for VHF applications with full ratings to 250 MHz and usable to 500 MHz. Extensively used in Motorola UHF FM equipment.

Length = 4.00" Diameter = 1.75"
Max voltage = 600
Max current = 200 ma
Fil voltage = 6.3 or 12.6
Fil current = 1.8 or .9 amps         GOTO INDEX
