5867

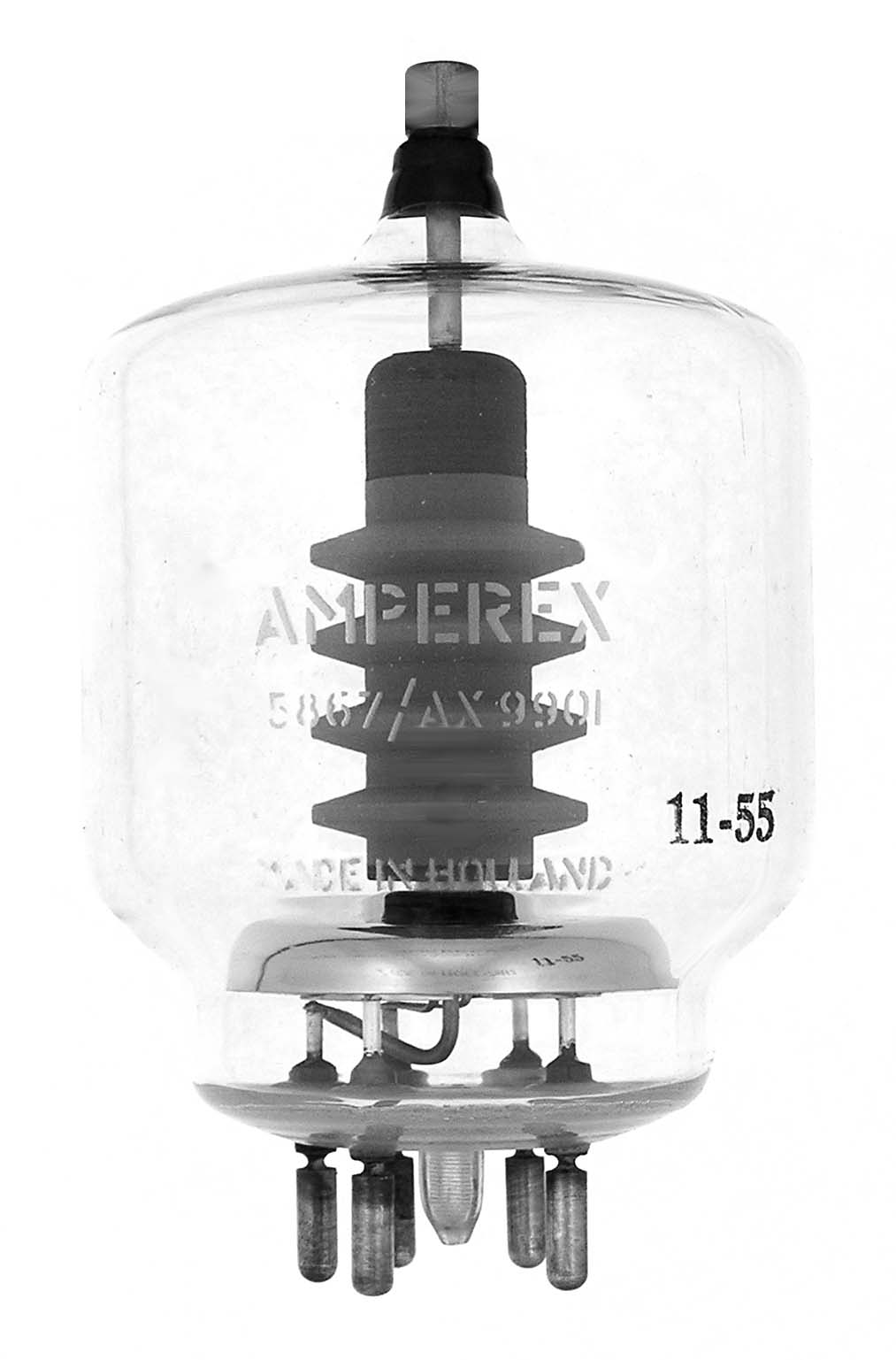

The 5867 or AX9901 is a 250 watt triode with a mu of 25 and a frequency of 100 MHz for full output. Intended for use in industrial heating and general RF/AF use.

Length = 5.30" Diameter = 3.25"
Max voltage = 4000
Max current = 400 ma
Fil voltage = 5
Fil current = 14.1 amps
Data sheet:
