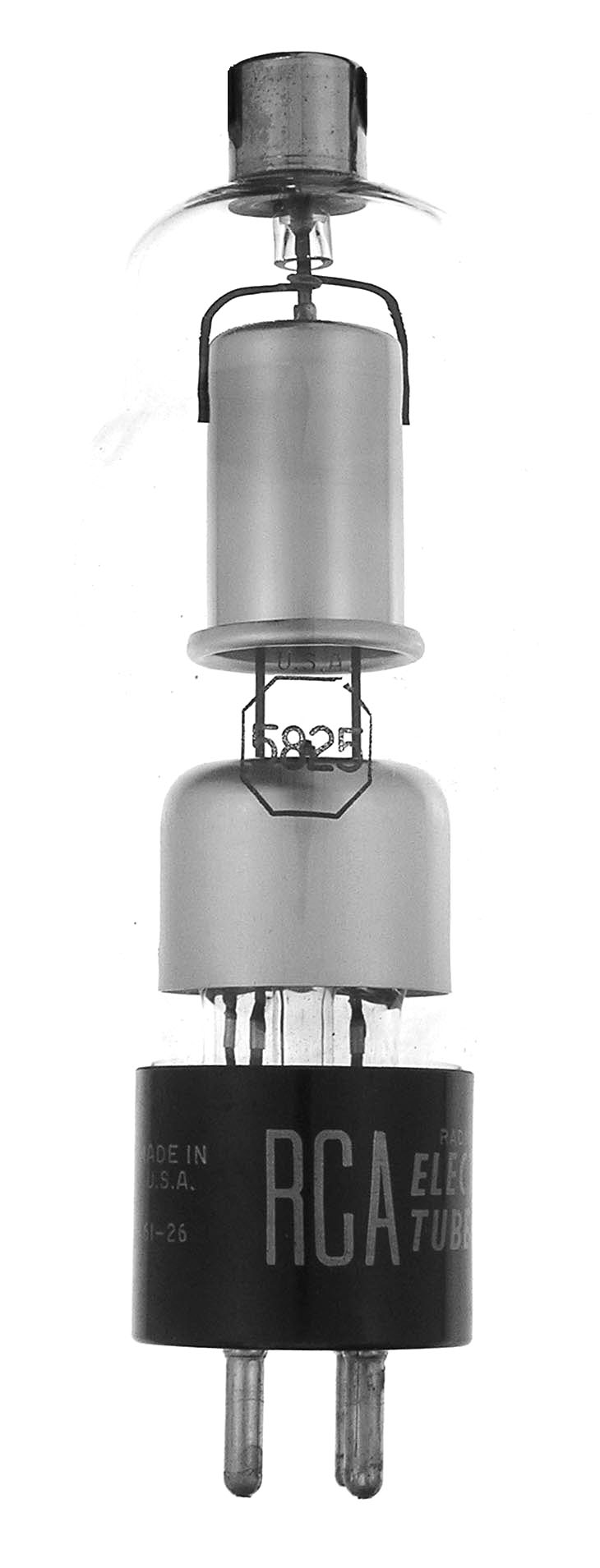

5825

The 5825 is a high voltage rectifier designed for rf-operated power supplies.

Length = 5.84" Diameter = 2.06"
Max voltage = 60000 piv
Max current = .04 ma peak
Fil voltage = 1.6
Fil current = 1.25 amps         GOTO INDEX
