5736

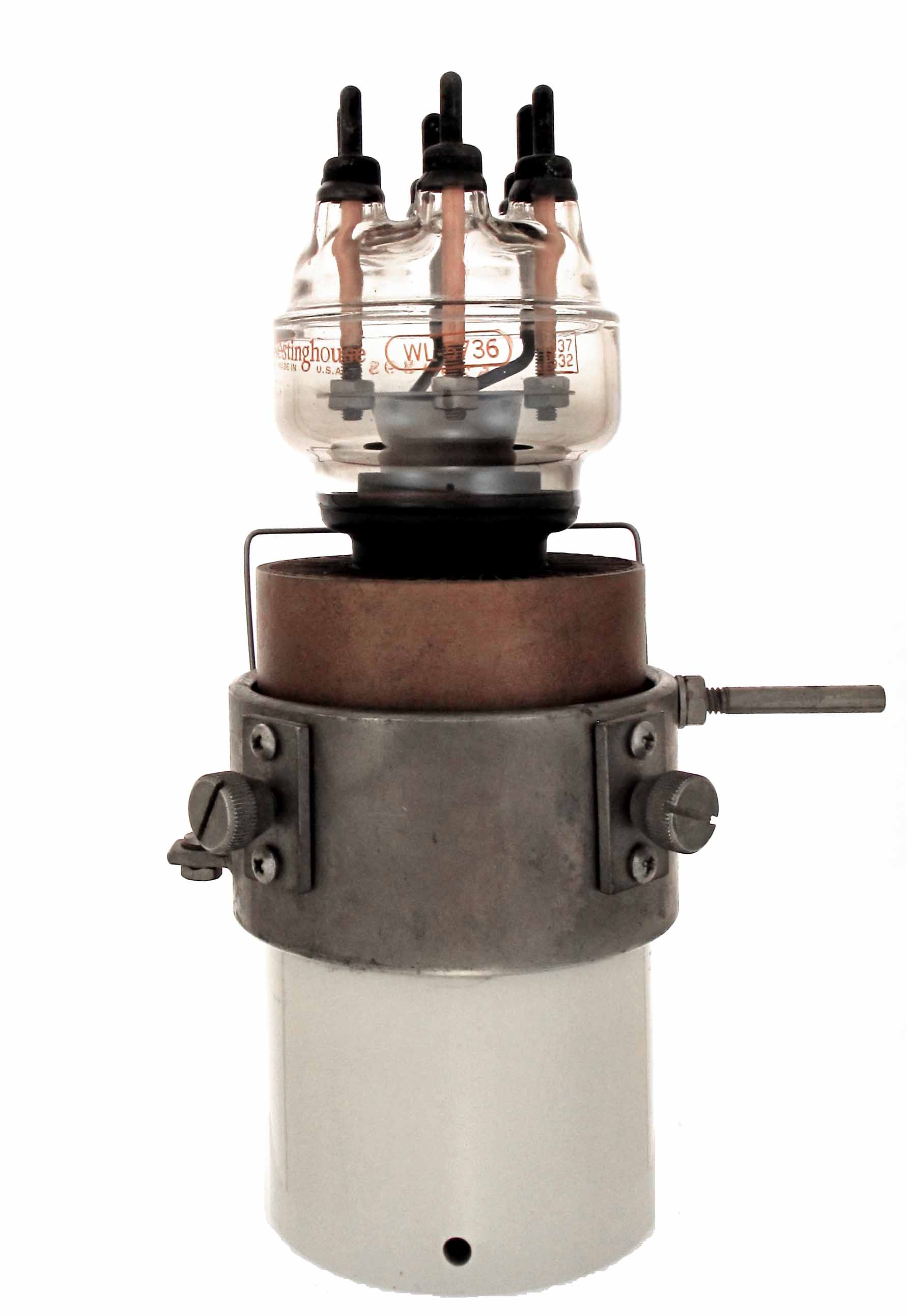

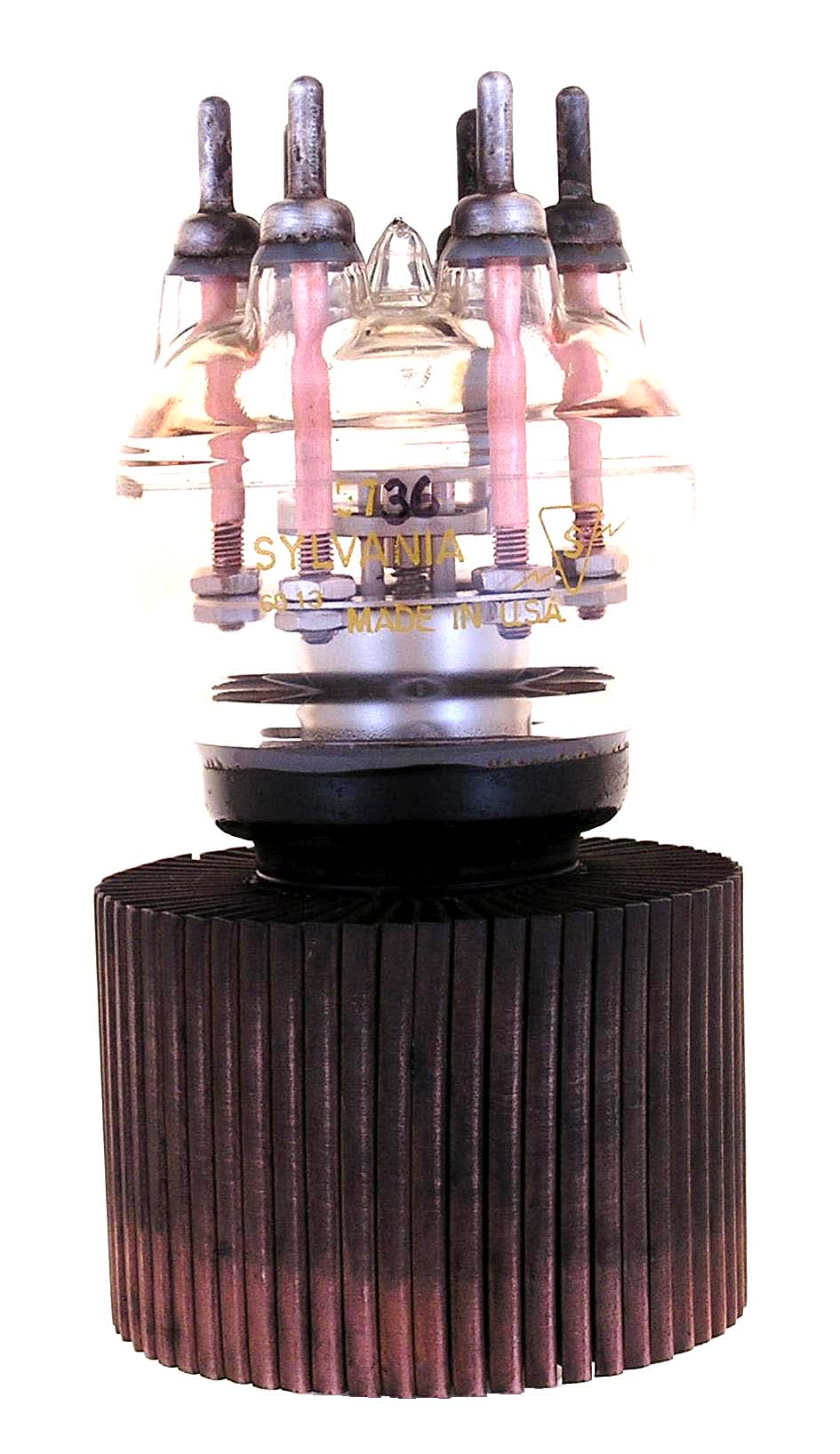

The 5736 is a 2.5 KW, forced air cooled triode with a mu of 22 and a maximum frequency of 110 MHz for full ratings. The first example was made by Sylvania and the second with different anode construction was made by Westinghouse (WL-5736). The tubes are shown mounted in two different styles of cooling chimneys.

Length = 7.00" Diameter = 3.50"
Max voltage = 3500
Max current = 1.5 amps
Fil voltage = 6
Fil current = 60 amps         GOTO INDEX
