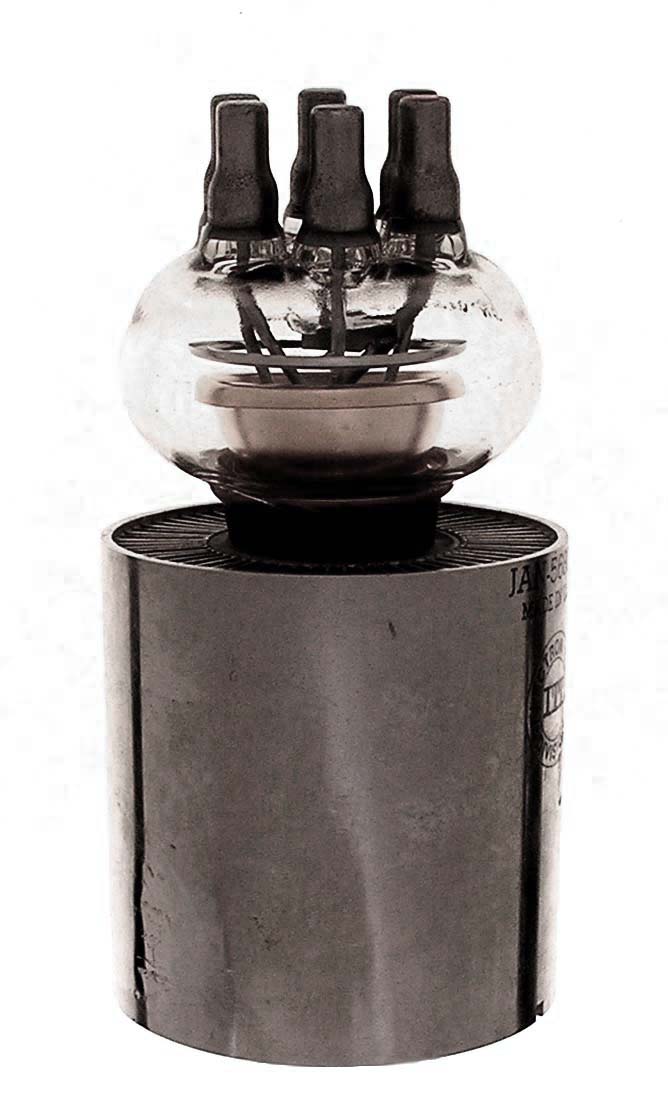

The 5680 is a 2500 watt triode with a mu of 25 and full ratings to 30 MHz. The original design was made by Federal (F-5680) and had the coronal ring. Later examples may not include the ring as in the second example made by ITT.
Length = 7.00" Diameter = 3.50"
Max voltage = 6000 (17,500 pulse)
Max current = 2 amp (35 amps pulse)
Fil voltage = 13
Fil current = 36 amps GOTO INDEX
