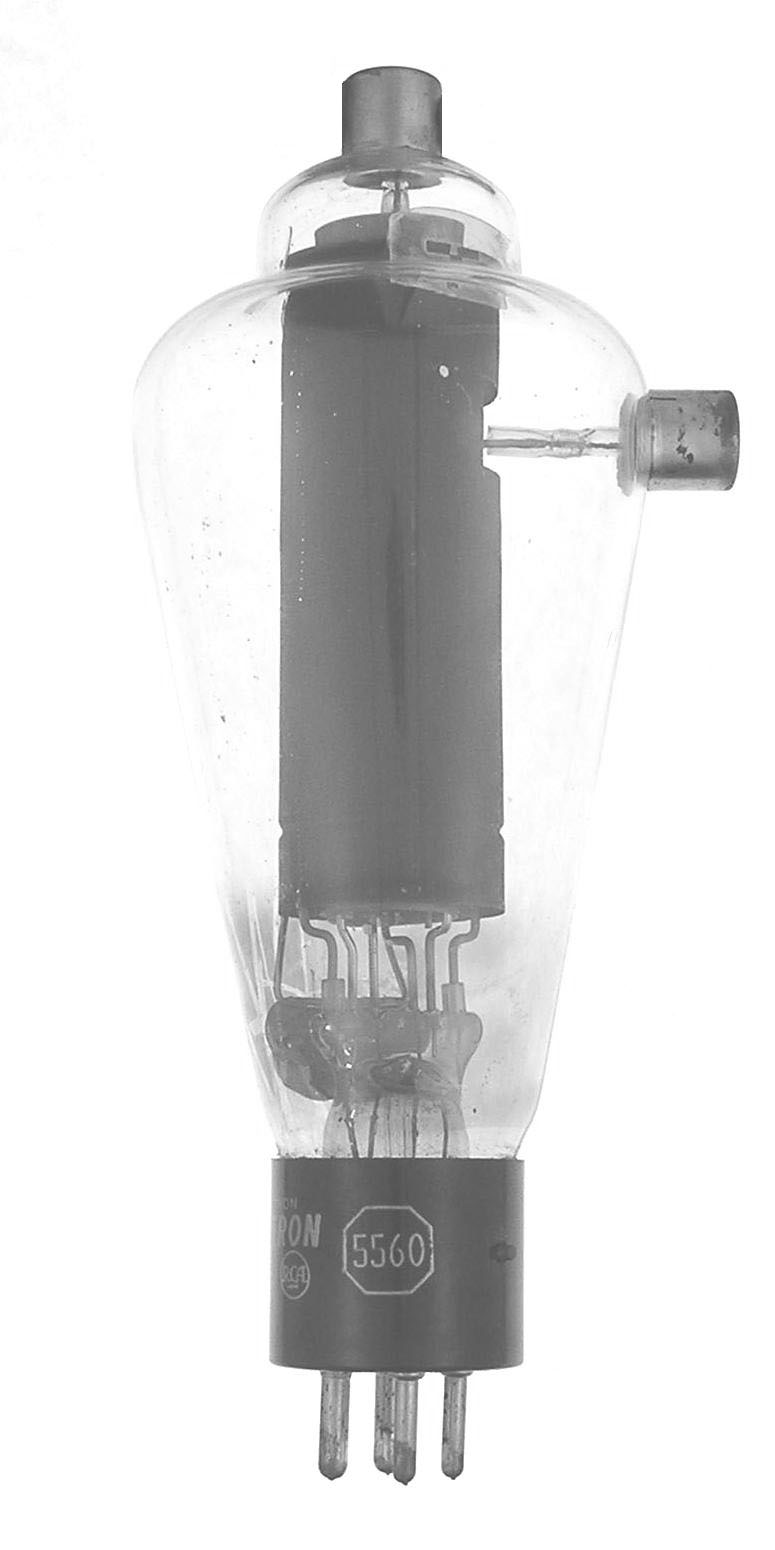

5560

The 5560 is a mercury vapor tetrode thyratron designed for control service.

Length = 7.50" Diameter = 2.75"
Max voltage = 1000 forward and inverse anode volts peak
Max current = 15 amps peak
Fil voltage = 5
Fil current = 4.5 amps         GOTO INDEX
