5514

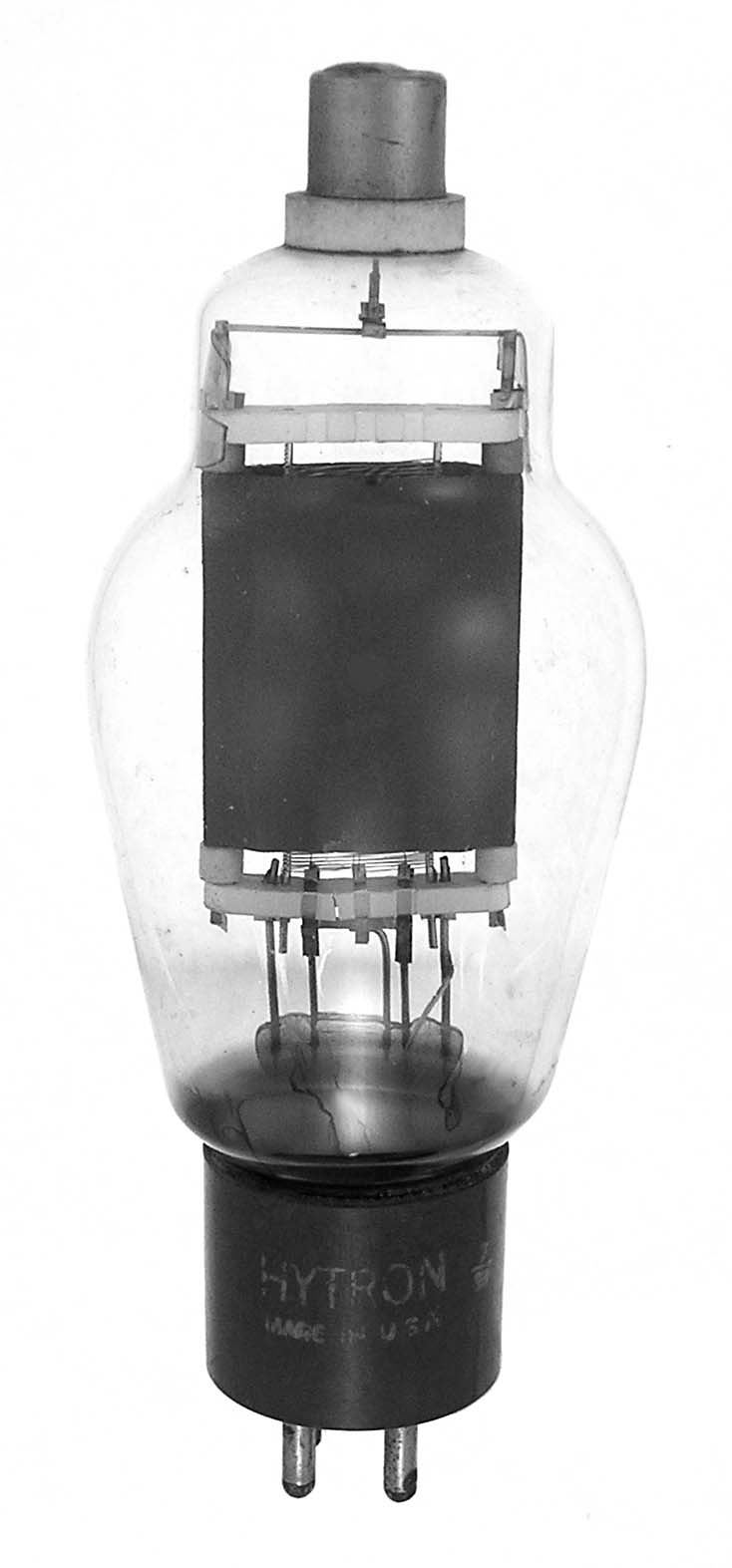

The 5514 is a 65 watt triode with a mu of 145 and full ratings to 60 MHz. Made by Hytron.

Length = 6.62" Diameter = 2.25"
Max voltage = 1500 VDC
Max current = 175 ma
Fil voltage = 7.5 volts
Fil current = 3 amps         GOTO INDEX
