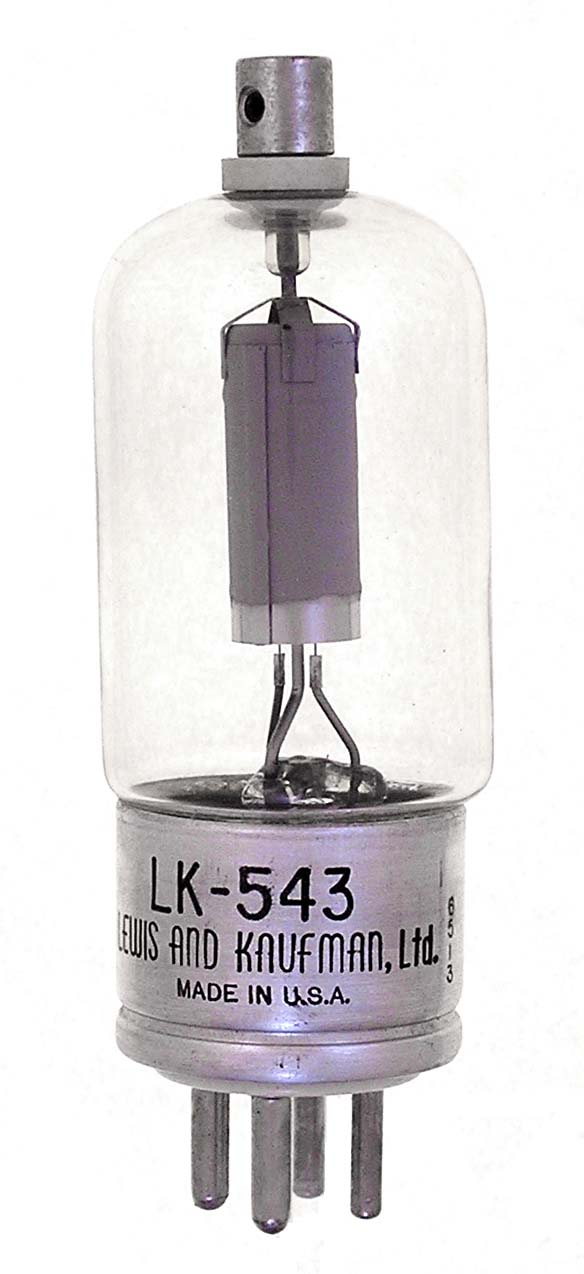

The 543 is a half wave rectifier designed for clipper diode service. The example was made by Lewis & Kaufman (LK-543). Length = 4.50" Diameter = 2.00" Max voltage = 30000 Max current = 100 ma Fil voltage = 5 Fil current = 5 amps GOTO INDEX
The 543 is a half wave rectifier designed for clipper diode service. The example was made by Lewis & Kaufman (LK-543).
