508

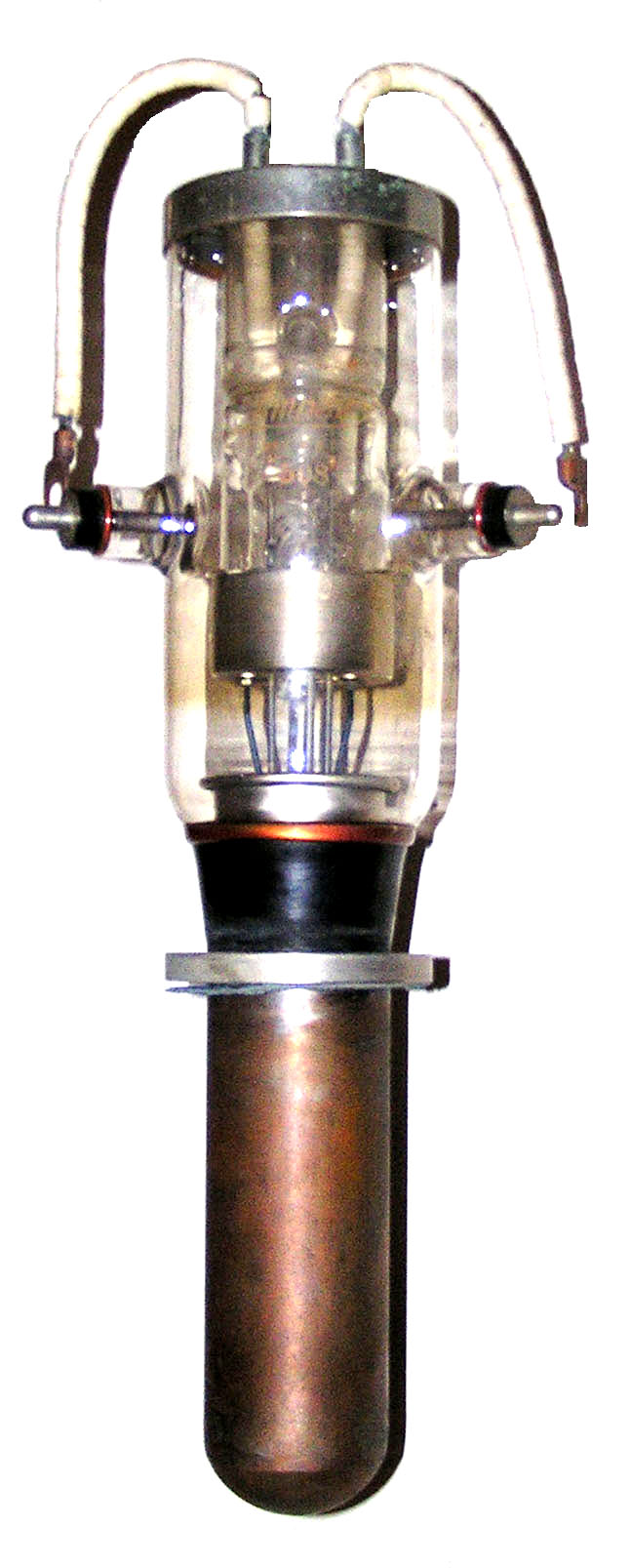

The 508 or 6246 is a 25000 watt, water cooled triode with a mu of 28 and a maximum frequency for full output of 40 MHz. Made by Amperex.

Length = 15.00" Diameter = 4.75"
Max voltage = 15000
Max current = 3.75 amps
Fil voltage = 30
Fil current = 80 amps
Data sheet:
