4KM50SJ

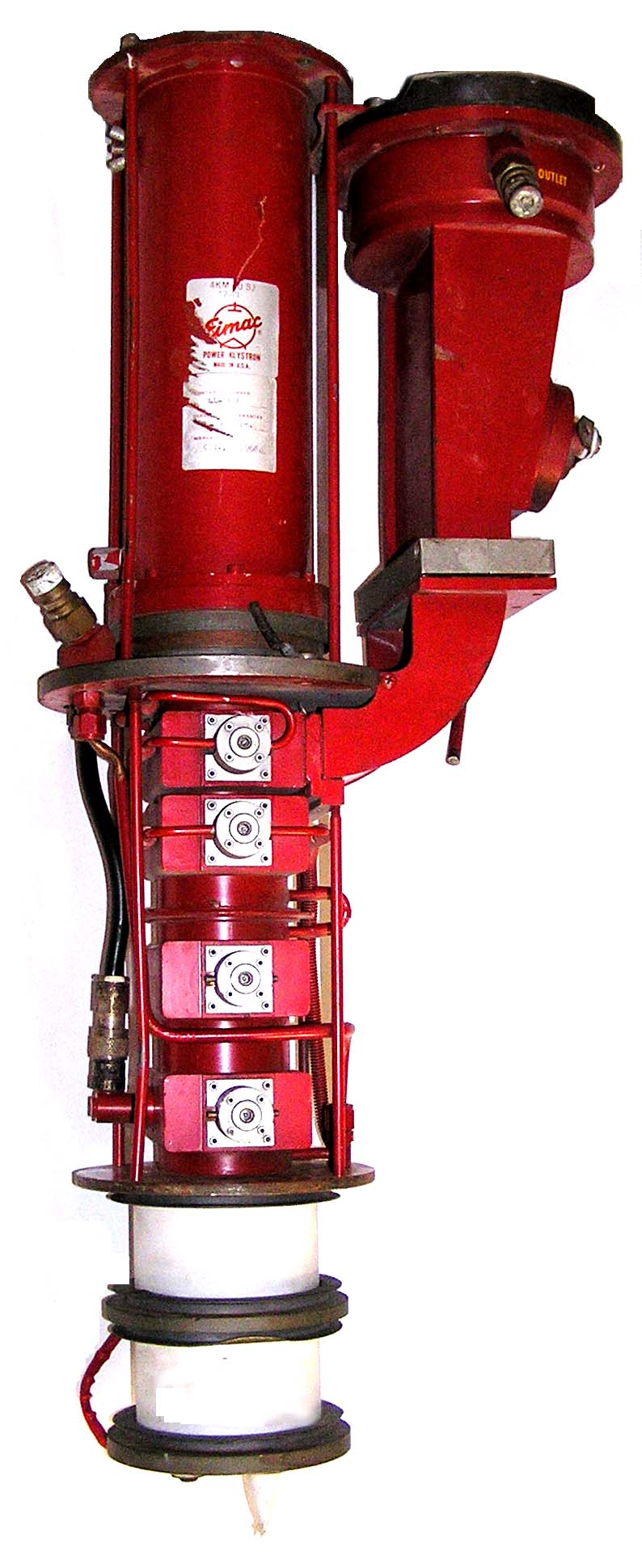

The 4KM50SJ is a 10 KW klystron. It operates from 1.7 to 2.4 GHz. This was Eimac's first high power microwave product. It features an internal titanium vacuum pump.

Length = 35.00" Diameter = 18.00"
Max beam voltage = 18000
Beam current = 1.8 amps
Fil voltage = 7
Fil current = 12 amp         GOTO INDEX
