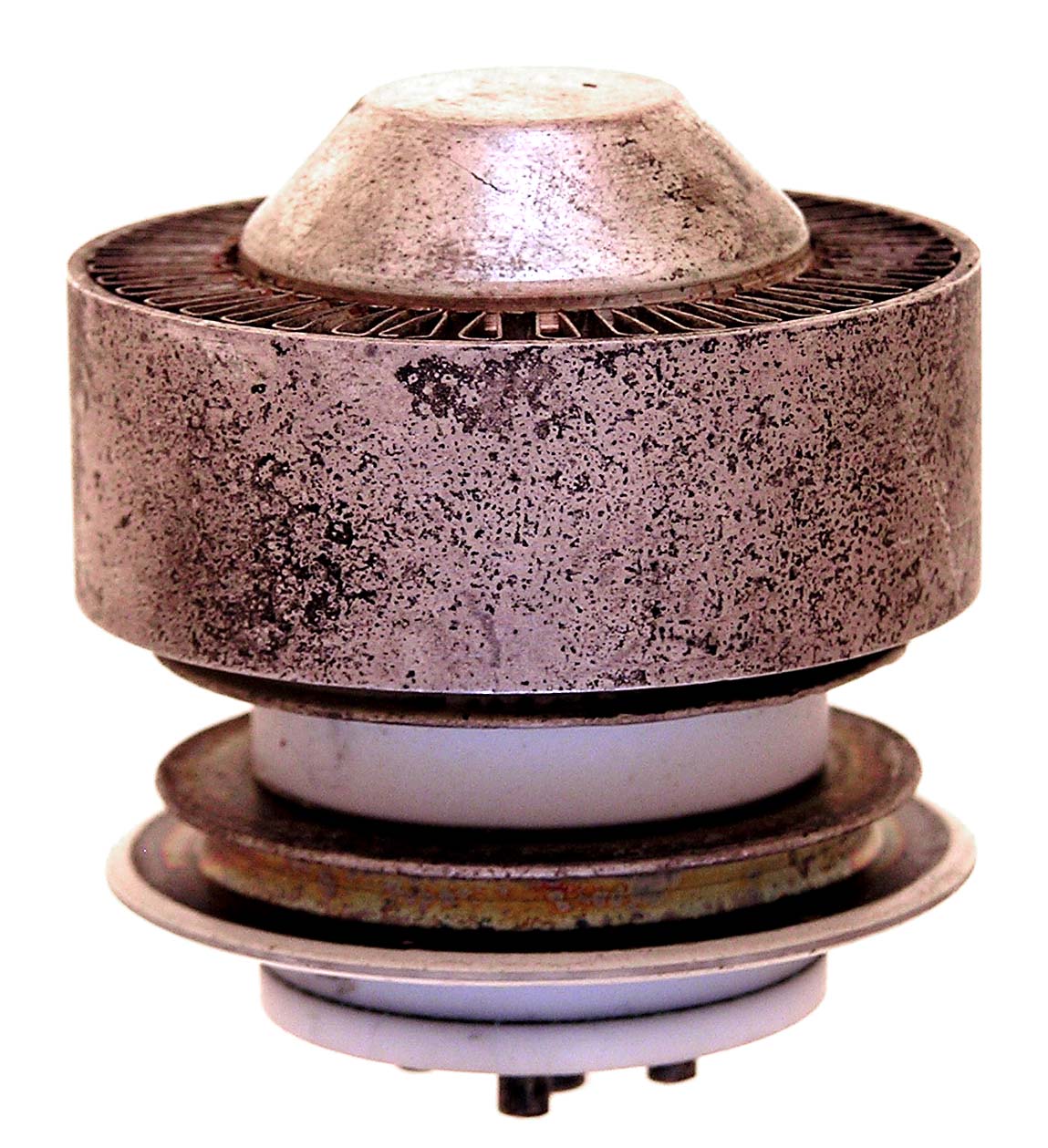

4CX600A

The 4CX600A is a 600 watt dissipation tetrode requiring forced air cooling. Full ratings to 1300 MHz.

Length = 2.20" Diameter = 2.10"
Max voltage = 3000
Max current = .5 amp
Fil voltage = 6
Fil current = 4.8 amps         GOTO INDEX
