4CX3500A

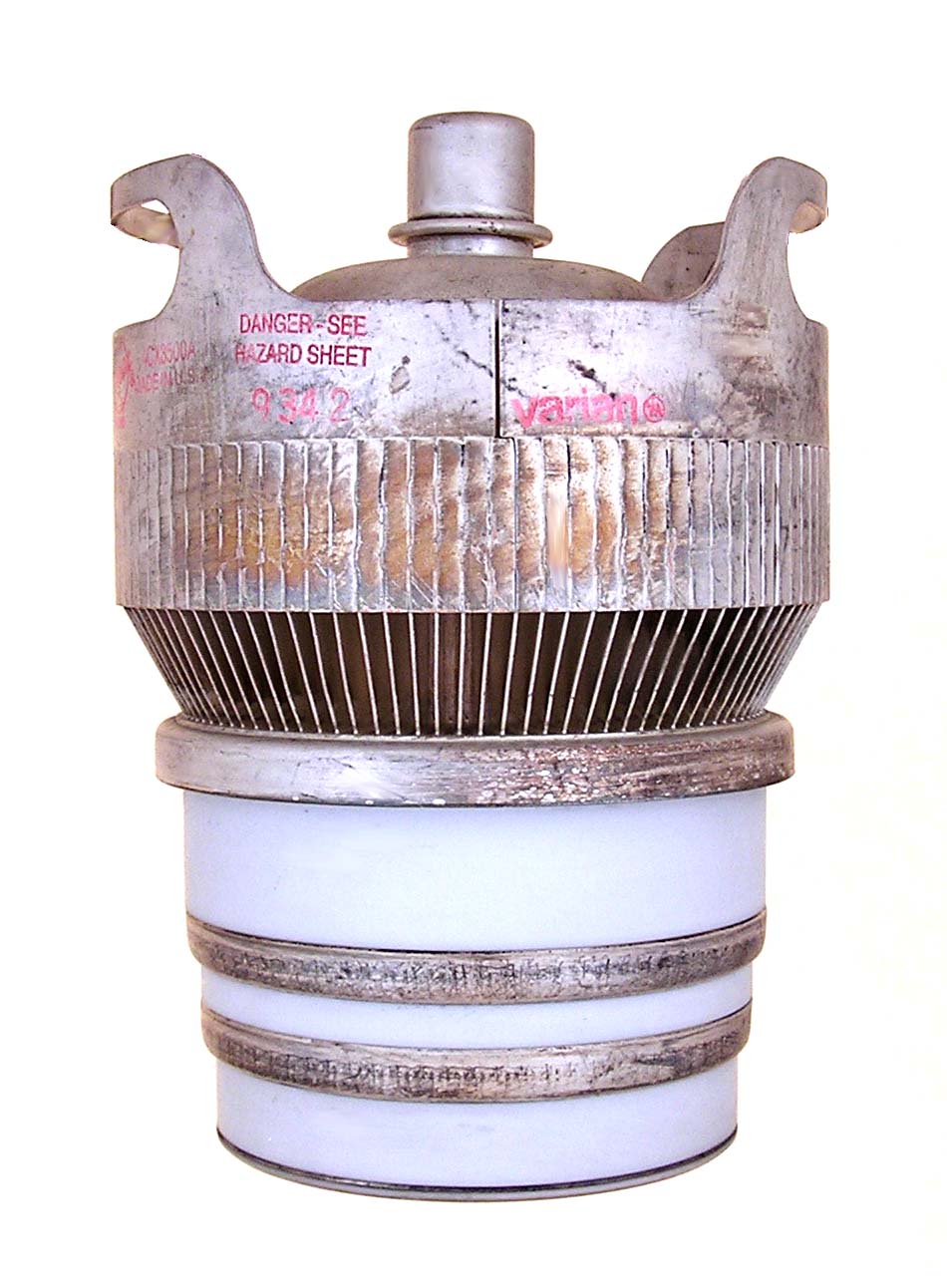

The 4CX3500A is a 3500 watt, forced air cooled, tetrode with a maximum frequency for full ratings of 220 MHz.

Length = 7.25" Diameter = 4.94"
Max voltage = 5500
Max current = 2 amps
Fil voltage = 5
Fil current = 90 amps         GOTO INDEX
