4CX35,000C/8349

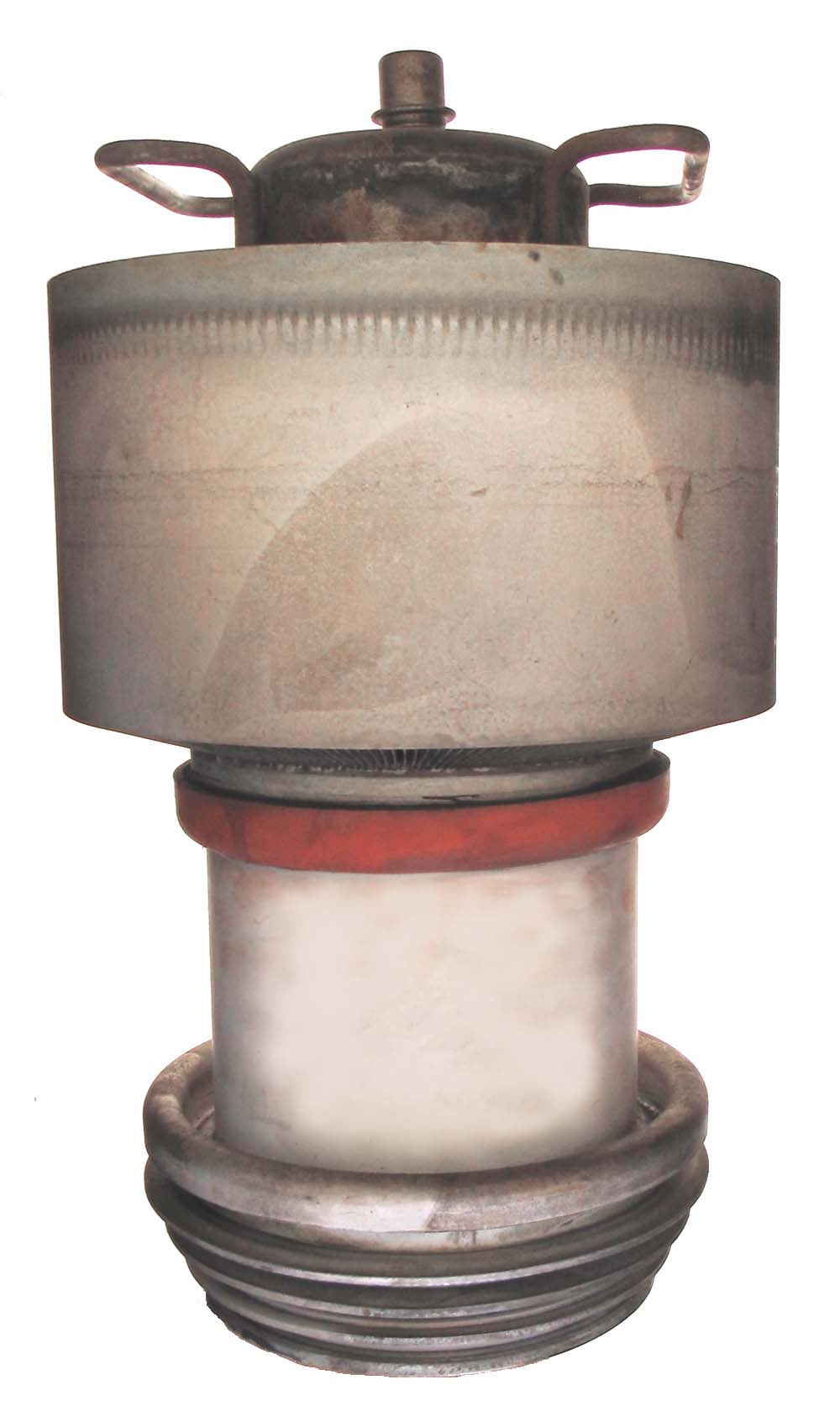

The 4CX35,000c or 8349 is a 35,000 watt tetrode with a maximum frequency for full output of 30 MHz made by EIMAC. Earlier examples didn't have the handles which wasn't a good idea with a tube weighing 50 pounds.

Length = 17.34" Diameter = 9.75"
Max voltage = 20,000
Max current = 15 amps
Fil voltage = 10
Fil current = 295 amps
Data sheet:
