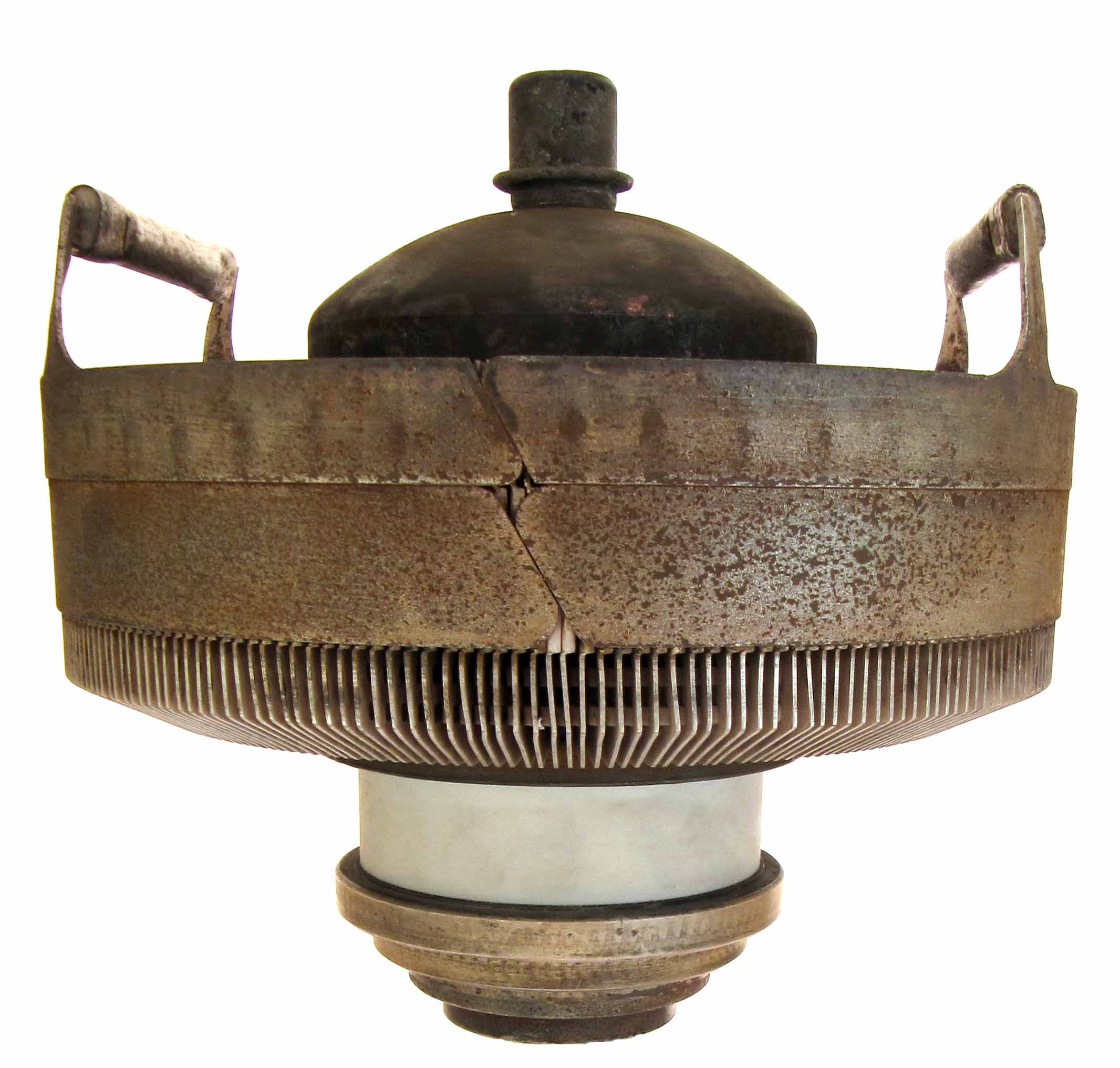

4CX26,000A

The 4CX26,000A or 9007 is a 26,000 watt tetrode with a maximum frequency for full output of 400 MHz that was made for TV transmitters.

Length = 8.31" Diameter = 8.35"
Max voltage = 13,000
Max current = 7 amps
Fil voltage = 9.5
Fil current = 147 amps
Data sheet:
