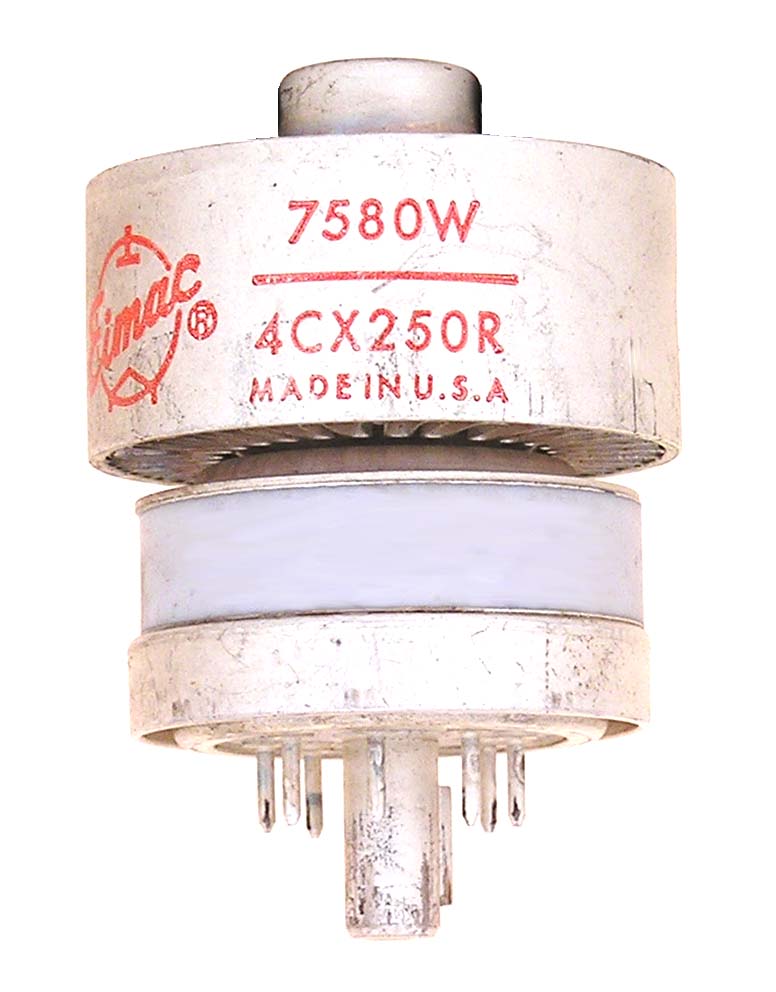

4CX250R/7580W

The 4CX250R (7580W) is a 250 watt, forced air cooled, power tetrode with a full rating frequency of 500 MHz designed for high shock and vibration environments.

Length = 2.47" Diameter = 1.64"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 6
Fil current = 2.6 amps         GOTO INDEX
